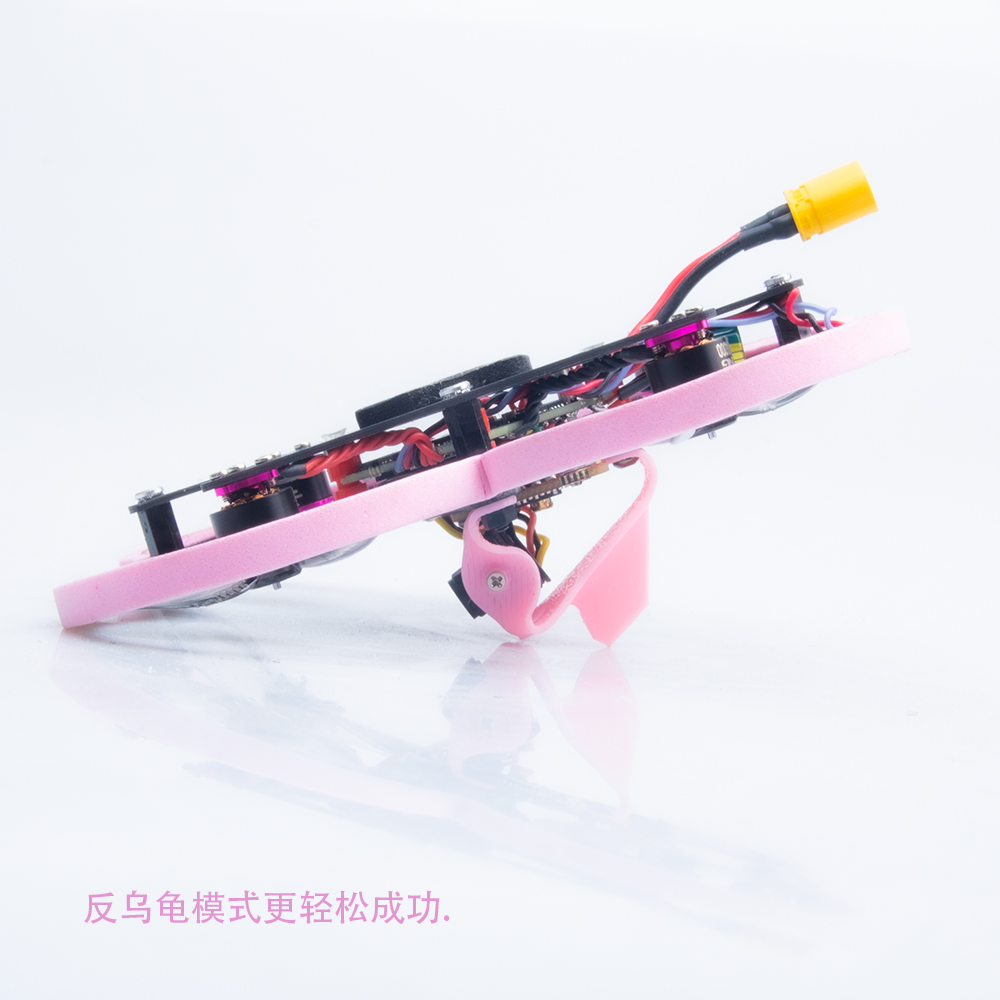

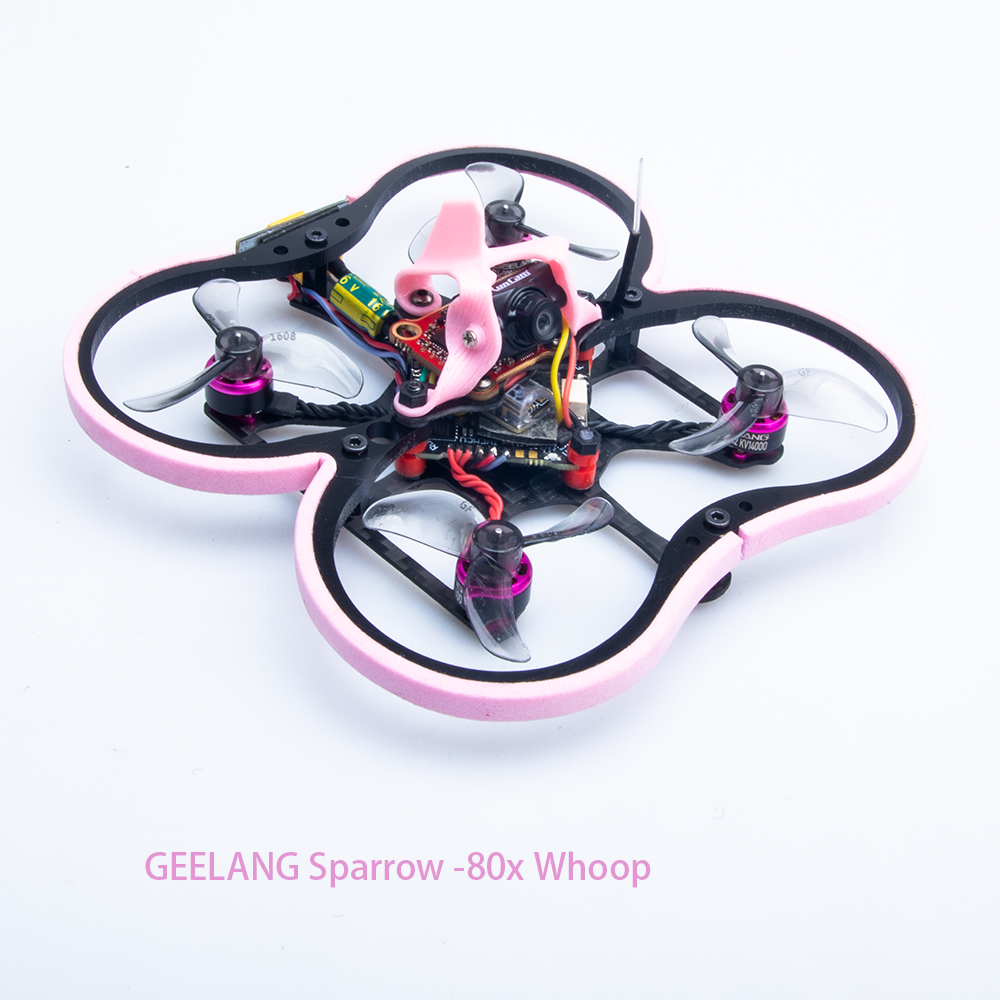

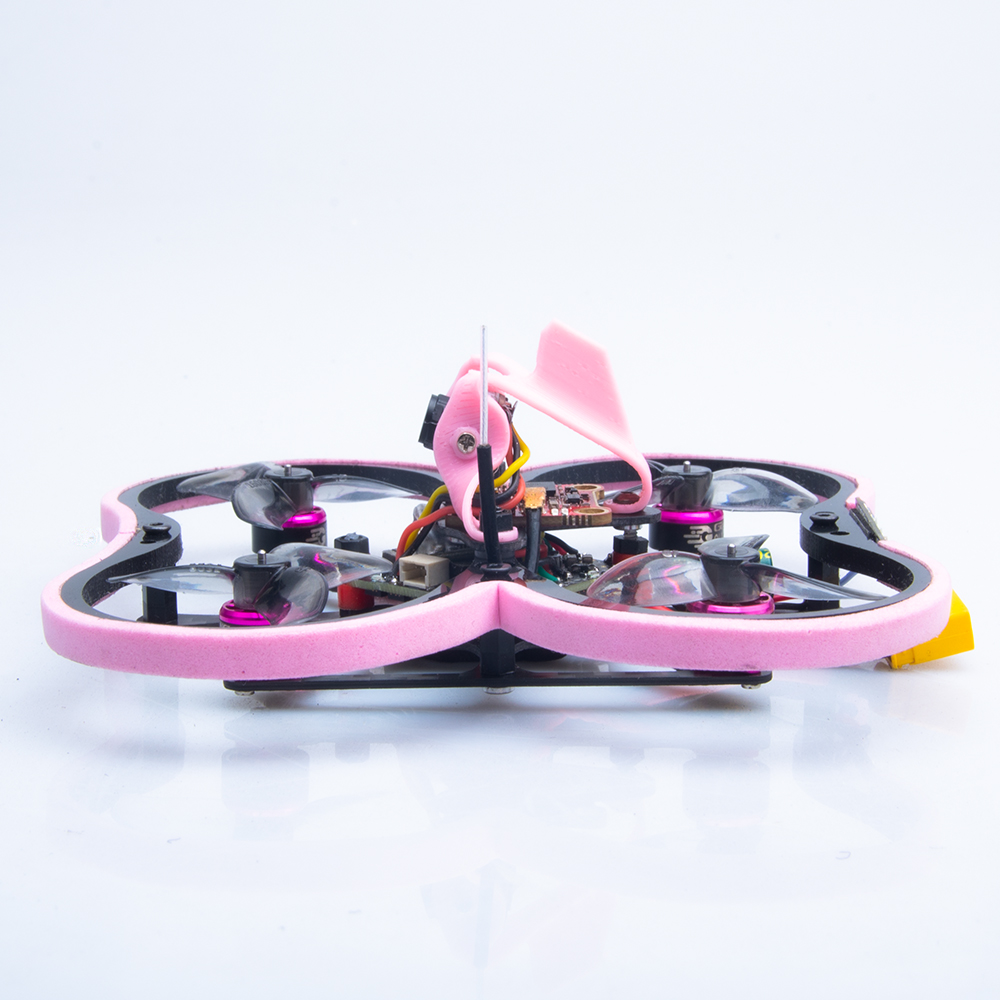

Sparrow 80X whoop

GL0802 KV14000 Motor

Motor ：KV14000

Configu-ration:9N12P

Stator Diamter:8mm

Stator Length:2mm

Shaft Diameter:Φ1.0mm

WindingSpecifications:180℃ Class Multiple oxygen-free copper

Weight(g):1.6g

No.of Cells(Lipo)：2S

F4 AIO12A PRO ESC

CPU:STM32F411 CEU6(100MHz)

IMU: BMP-270 (SPI connection)
Firmware: F411

OSD:Built-inOSD (STM32 controls the OSD chip via SPI)

Data storage:8m black box

Programmable LED such as WS2812: Support
Built-in current sensor
Reserved buzzer interface
Mounting Hole: 25.5x25.5mm
Weight: 8g

-  Support Frsky/ Flysky/Futaba/DSMX/TBS /ELRS

 Crossfire Receiver

Onboard 12A BL_S 4in1 ESC

Onboard 4in1 ESC MCU upgraded to EFM8BB21

Power supply: 1-2S LiPo/LiPo HV (3.2v/7.4v)

Current: 12A continuous peak 15A (3 seconds)

Support BLHeliSuite programmable

Factory firmware: G_H_30_REV

Default protocol: DSHOT300

propeller

Gemfan 1608 Cinewhoop props

Material: PC

Weight: 0.91g

Pitch:1.6 inches

Center hole diameter: 1.0mm 3 holes

Battery recommended

Species : lipo、lipoHV

Capacity:300mah-500mahVoltage:11.1V
Continuous Discharge Rate: 95C
Instantaneous discharge rate: 110C
Connector: xt30

5.8G VTX

Power switching: four gears (25MW, 100MW, 200MW，400MW)

Frequency: 40CH

Input voltage: 11.1V-14.8V

Current consumption: 480mA (type)

Frequency: 5.8GHz 5bands 40 channels

belt

Smartaudio ready (Frsky EU-LBT and DSMX versions are not compatible)

Weight: 6.0g

Runcam  Camera

Model: Atom-W

Image Sensor: 1/3 CMOS

Horizontal Resolution: 800TVL

Lens: FOV 130°(4:3)

Signal System: NTSC

S/N Ratio: >50dB

Min. Illumination: 0.01Lux@1.2F

Current :160mA@3.3V-5V

Housing Material: ABS

Net Weight: 1.7g

Dimensions: L16mm*W10mm*H10mm
