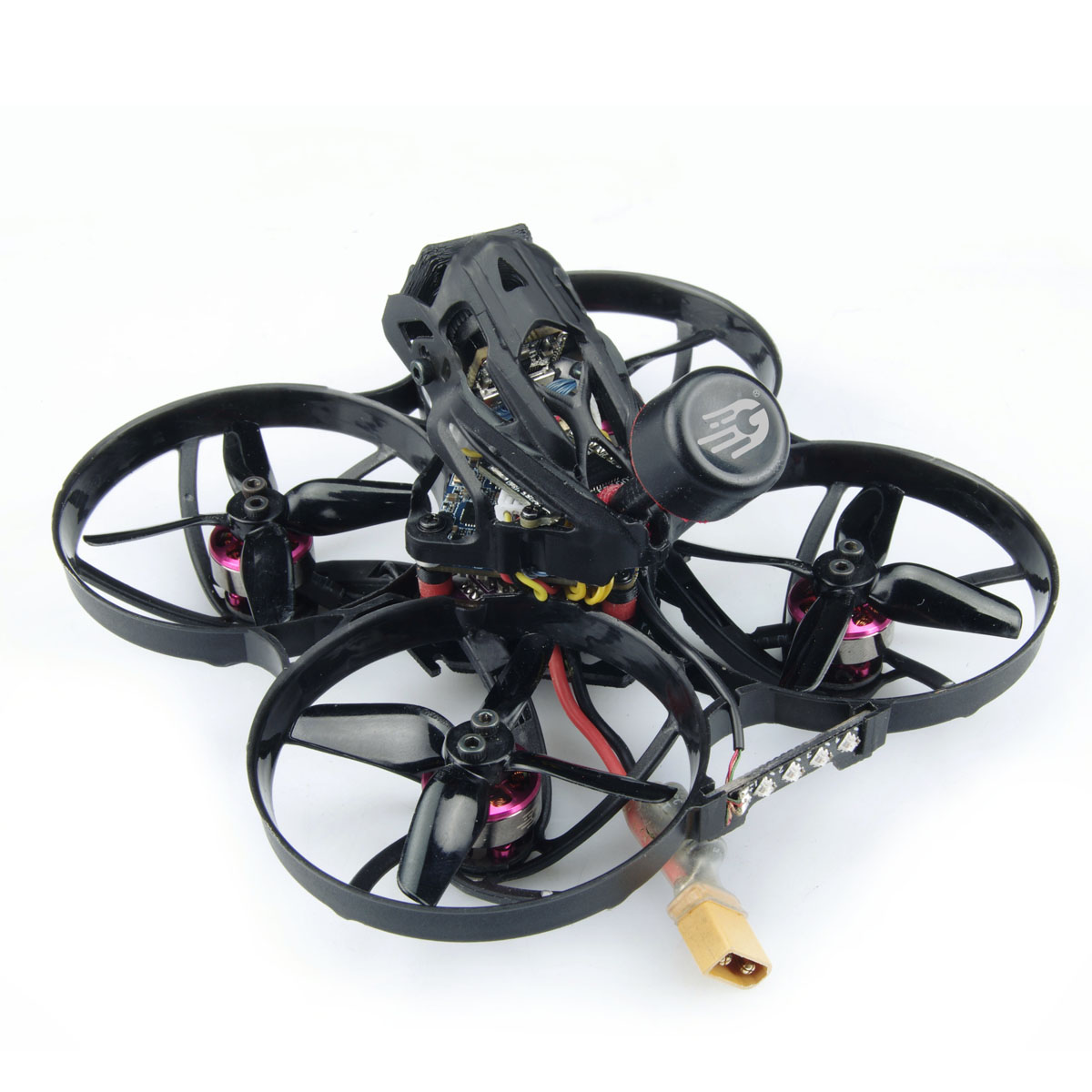

ANGER 85X 4K HD Cine whoop 3-4S FPV Racing Drone Caddx Loris 4k fpv camera

Item Name： Anger 85x 4k HD Cine whoop
Wheelbase：85mm
Size：118mm * 118mm * 65mm
Weight：72g （without battery）
Best with 4S 450mAh lithium battery, flight time can reach 6 minutes 30 seconds -7 minutes

Contacts

Product Details

ANGER 85X 4K HD Cine whoop 3-4S FPV Racing Drone Caddx Loris 4k fpv camera

Specifications

Brand Name：Geelang

Item Name： Anger 85x 4k HD Cine whoop

Wheelbase：85mm

Size：118mm * 118mm * 65mm

Weight：72g （without battery）

Best with 4S 450mAh lithium battery, flight time can reach 6 minutes 30 seconds -7 minutes

Motor

Motor Mode：GL1204 KV5000

Stator specifications：D12 * H4 0.2mm Kawasaki

Configu-ration:9N12P

Stator Diamter:12mm

Stator Length:4mm

Shaft Diameter:Φ1.5mm

Motor Dimension(Dia.*Len):Φ16.0mm*15.8mm

Magent specifications: N52H

Shift specifications: 2mm High strength steel

Bearing Specifications: d2*D5*H2.5 MR52zz Japan ISC Custom made

WindingSpecifications:180℃ Class Multiple oxygen-free copper

Weight(g):5.8g

No.of Cells(Lipo)：3S-4S

propeller: HQ Durable T2X2X4.

FC：

Flight controller：SI-F4FC V1 Three-in-one tower Version:MATEKF411

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)

Sensor: MPU-6000(SPI connection)

Store：Onboard black box

Board size:21 * 21MM

Power supply: 2-4S battery input (DC 7-17V)

Built-in 12A(each) Blheli_S 4in1 ESC Dshot600 ready

Built-in Betaflight OSD(SPI Control)

Built-in Current meter Max 70A

Current meter scale set to 480

Built-in 5V 2A BEC

Built-in voltage detection

Onboard 4in1 ESC MCU upgraded to EFM8BB21

Power supply: 2-4S LiPo/LiPo HV (7v/17v)

Current: 13A continuous peak 15A (5 seconds)

Support BLHeliSuite programmable

Factory firmware: G_H_30_REV16_77.HEX

Default protocol: DSHOT600

Receiver：

External receiver matching:

compatible Frsky （ac900）SPI receiver

Frsky D16switchable

compatible futaba s-fhss switchable

Failsafe support

No ground interference ( Transmitter and receiver 1 m from the ground): =300m

Frsky XM+ version SPI receiver

Frsky XM+ LBT-D16 mode (need to download and use firmware in frsky)

No ground interference ( Transmitter and receiver 1 m from the ground): >300m

Failsafe support

compatible Flysky receiver Version SPI BUS receiver

Protocol：AFHDS-2A

Channels：14ch（AFHDS-2A）

No ground interference ( Transmitter and receiver 1 m from the ground):= 300m

Failsafe support

TBS Crossfire version : TBS Crossfire Nano RX

CRSF Protocol , Official TBS transmitter compatible No ground interference ( Transmitter and receiver 1 m from the ground): >300m

Failsafe support

PNP NO RX：No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc.

5.8g VTX：

VTX Output power：25~200mw switchable

Frequency：40CH

Input voltage: 3.2V- 5.2V

Current consumption: 320mA(type)

Power switching: third gear(25MW 、 100MW 、200MW)

Antenna: Lollipop 5.8GHz 2.3dBi Ultra Mini FPV

Antenna Frequency: 5.8GHz 5bands 40 channels

With Race band

Smart audio ready

Weight:1.7g

LED: RGB LED light strip, adjustable flight control

Camera：

LORIS : 1/2.7” COMS sensor

Horizontal: 800TVL

Video Rolution:1080p/60FPS.1080P/120FPS. 2.7K60FPS.4K/30FPS.4K/60FPS.(REAL3.5K/60FPS)

FPV/Recording FOV：165’

Lens：1.8mm Lens

FPV Latency:40ms

TV System:NTSC/PAL(changeable)

Audio:Digtal MIC

Min.ILLumination: 0.01LUX

WDR:DWDR

FLY OSD: YES

Video Files: MP4

Electronic Shutter: PAL1/50~100.000;NTSC:1/60~100.000

DNR: 3DNR

Video Output: CVBS

Weight:10g

UV mirror: Exclusive use, exclusive customization.

Size:19x17.5x6.6mm

Weight：1.1g

Performance: Exclusive use, can effectively solve the water ripple problem caused by insufficient shutter refresh when shooting video under strong light or backlight conditions, and has a certain suppression effect.

Battery：

Best with 4S 450mAh lithium battery

flight time can reach 6 minutes 30 seconds -7 minutes

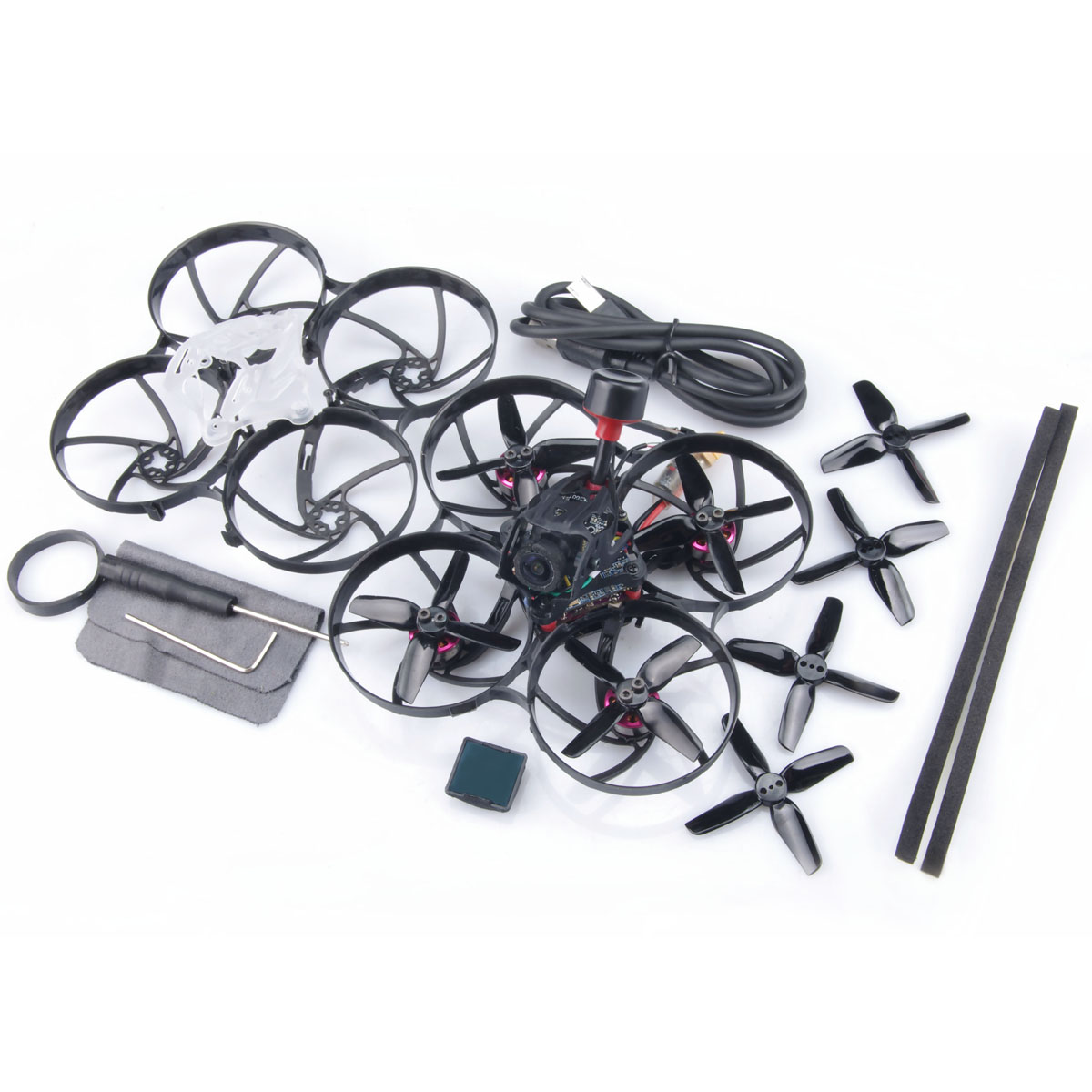

Package Included：

2 x 85X mm frame and helmet

1 x Option1：SI-F4FC V1 with external compatible Frsky ac900RX Compatible futaba

Option2：SI-F4FC V1 with external Frsky XM + EU version rx

Option3：SI-F4FC V1 with external compatible Flysky RX

Option4：SI-F4FC V1 with external compatible TBS Receiver

Option5：SI-F4FC V1 NO RX

4 x 1204 KV5000

1 x 2 Inch propeller（4cw + 4ccw）HQ Durable T2X2X4.
