GELELANG AMG 65X 1-2S WHOOP
Mode Name: AMG 65X WHOOP
Item Name: 2S 100mm Brushless Whoop racer drone BNF
Wheelbase: 65mm
size: 93x93x37mm
Weight: 34g(without battery)
Specifications:
Brand Name: GEELANG
Mode Name: AMG 65X WHOOP
Item Name: 2S 100mm Brushless Whoop racer drone BNF
Wheelbase: 65mm
size: 93x93x37mm
Weight: 34g(without battery)
Features:
Use Play F4 flight controller to support 1-2s lithium battery power supply. Integrate Betaflight OSD function, keep abreast of the flight voltage, receiver signal, and observe the situation in real time while flying.
VTX comes with Smartaudio function, you can adjust the flight control parameters through the OSD, adjust the flight control PID, and adjust the VTX frequency parameters
Completely assembled and debugged, you can fly with the remote control
2s 65X, 40MM three-blade propeller, surging power and lasting flight time
Support Betaflight tuning, multiple flight modes, carefully adjusted by the original factory, suitable for novice flight practice, stable style.
Use an integrally molded plastic frame of special material. Strong structure and light weight. The helmet with unique carbon fiber and tpu printing is unique and durable.
Multiple versions of receivers are used independently, and the electronic control is more stable. The flight control adopts the newer version of Betaflight4.2
Compared with the conventional 65x 1s, the power is more confident. Violent flight takes longer

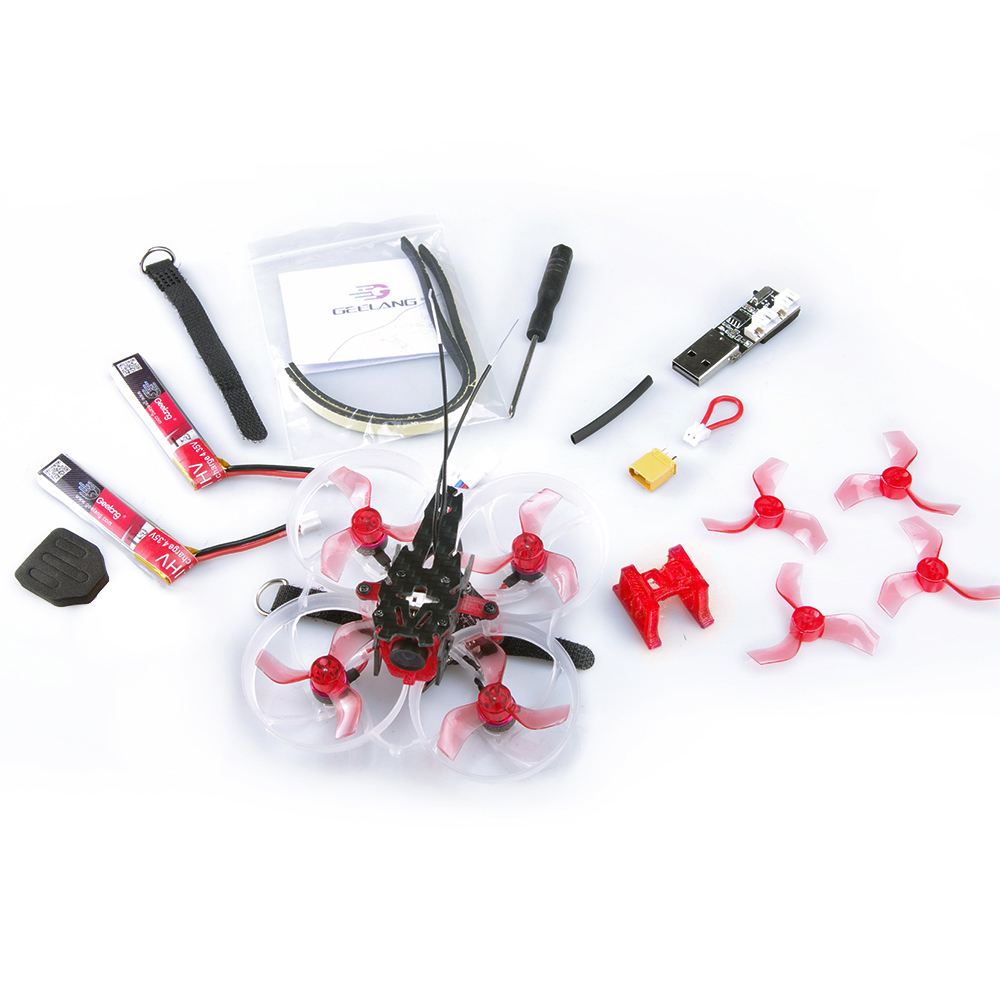

Package includes:
|
Item Name |
|
Standard version |
|
65mm integrated plastic frame |
|
2 |
|
|
|
|
|
Option1: Play F4 FC external Frsky NON-EU/ xm+ receiver |
|
1
|
|
Option2: Play F4 FC external Frsky EU-LBT xm+ receiver |
||
|
Option3: Play F4 FC external Frsky AC900 receiver |
||
|
Option4: Play F4 FC external Frsky D8 receiver |
||
|
Option5: Play F4 FC external FLYSKY receiver |
||
|
Option6: Play F4 FC external TBS NANO receiver |
||
|
Option7: Play F4 FC PNP NO RX receiver |
||
|
GL0802 KV14000 Motor |
|
4 |
|
1630mm propeller(4cw+4ccw) |
|
1 |
|
5.8G fe200t |
|
1 |
|
Screwdriver removal tool |
|
1 |
|
Battery installation tpu sleeve |
|
1 |
|
Handbag |
|
1 |
|
Propeller disassemble tool |
|
1 |
|
Screwdriver |
|
1 |
|
1s300mah lihv |
|
2 |
|
USB 2-in-1 charger |
|
1 |
Spare parts specifications:
|
Motor |
Mode: GL0802 KV14000 Configu-ration:9N12P
|
|
Flight controller |
Flight controller：Play F4 whoop Version:F411CEU6 MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Board size:28.5 * 28.5MM Power supply: 1-2S battery input (DC 3.2-8.4V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in 5V 2A BEC Built-in voltage detection Firmware version：Betaflight Configurator4.2.0 |
|
Onboard 4in1 ESC |
Onboard 4in1 ESC MCU upgraded to EFM8BB21 Power supply: 1-2S LiPo/LiPo HV (3.5v/8.7v) Default protocol: DSHOT600 Power input: XT30 |
|
Frsky NON-EU/EU-LBT XM+ receiver Version |
SBUS receiver Frsky D8/D16 switchable Compatible Non EU transmitter both D8 and D16 mode Channels: 8ch or 16ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 300m Operating Voltage Range: 3.7~10V |
|
Frsky AC900 receiver Version |
SBUS receiver Frsky D16 switchable Compatible Non EU transmitter both D16 mode Channels: 8ch or 16ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 300m |
|
Frsky D8 receiver Version |
SBUS receiver Frsky D8Compatible Non EU transmitter both D8 mode Channels: 8ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 200m |
|
Flysky receiver Version |
IBUS receiver Protocol: AFHDS-2A Channels: 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 300m Failsafe support |
|
TBS NANO receiver version |
CRSF Protocol , Official TBS transmitter compatible Protocol: CRSF Channels: 8ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 500m
|
|
PNP receiver version |
Support any bus and other protocols, users can install by themselves |
|
5.8G VTX |
Power switching: third gear(25MW 、 100MW 、200MW) Frequency: 40CH Smartaudio ready(Frsky EU-LBT and DSMX version not compatible) |
|
camera |
Runcamnano4 Image Sensor 1/3" CMOS Sensor Horizontal Resolution 800 TVL TV System NTSC Lens 2.1mm（m8）FOV155° Dimensions 14*14mm Wide Power Input DC 3.7-18V Weight 2.9g (N.W.) |
|
propeller |
Brand Name: Gemfan1630 Product name: 40MM 1mm PC propeller Length/inch: 40mm color: red Material: PC Weight: 0.4/piece |
|
Battery recommended |
Species : lipo、lipoHV Capacity:250、300、450mah
|
|
|
|
