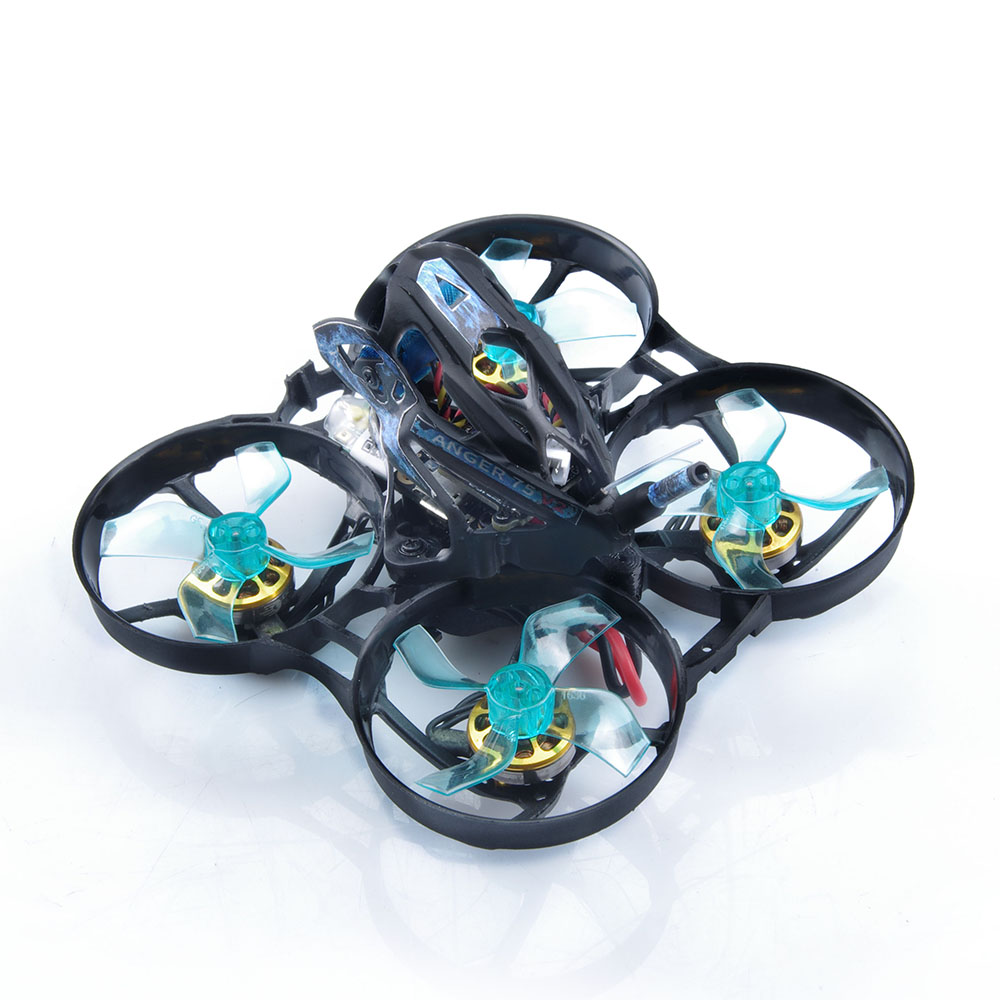

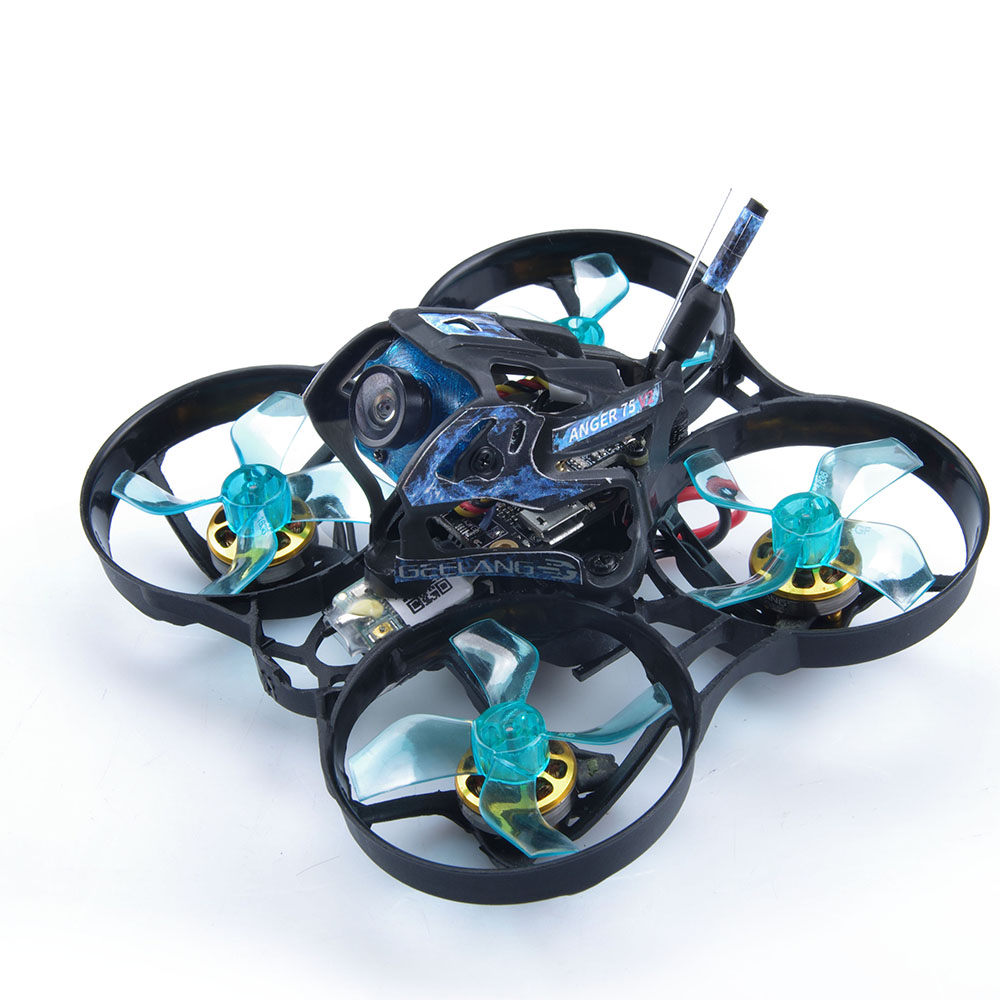

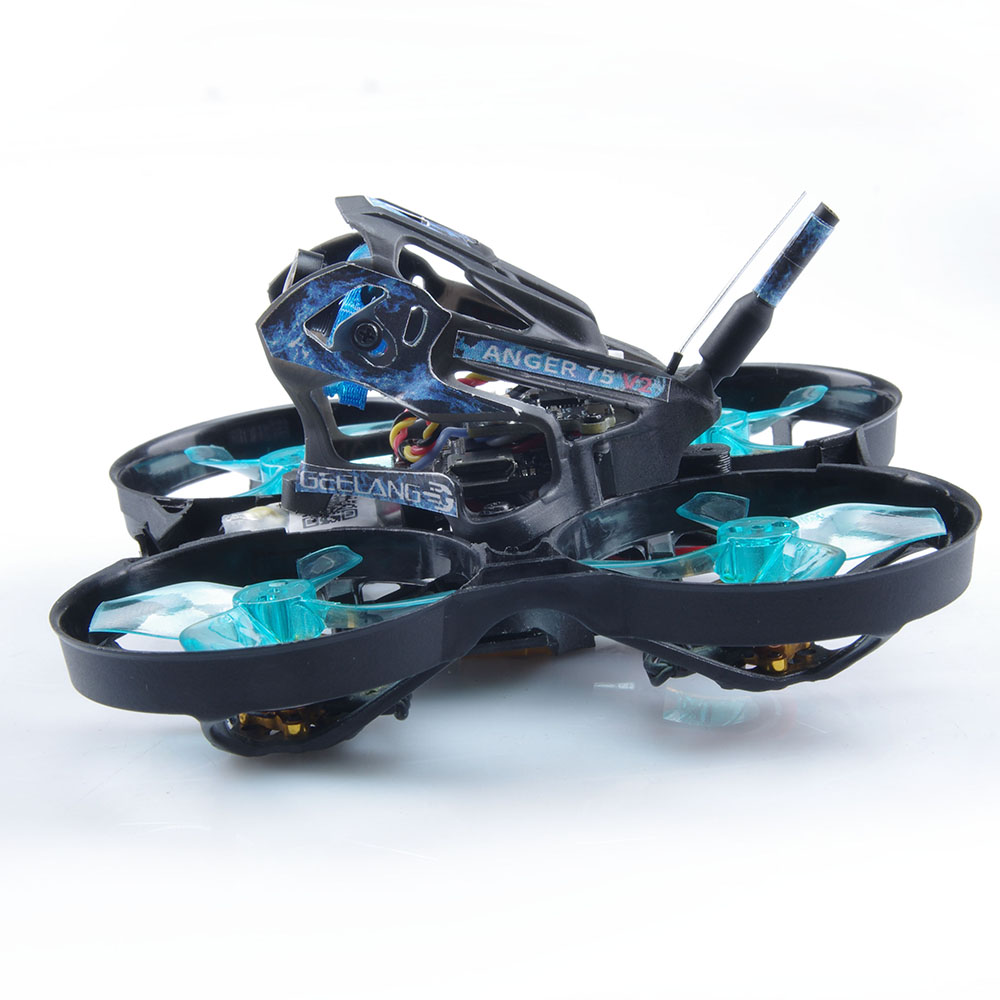

ANGER 75X v2 whoop 3-4S FPV Racing Drone BNF / PNP SI-F4FC GL950PRO

tem Name： Anger 75X v2 whoop

Wheelbase：75mm
Size：106mm * 98mm * 53mm
Weight：46g （without battery）
Weight：76g（with Original 4s 260mah Lipo battery）

Contacts

Product Details

Specifications

Brand Name：Geelang

Item Name： Anger 75X v2 whoop

Wheelbase：75mm

Size：106mm * 98mm * 53mm

Weight：46g （without battery）

Weight：76g（with Original 4s 260mah Lipo battery）

Spare parts specifications：

Motor Mode：GL1202 KV6900

Stator specifications：D12 * H2 0.2mm Kawasaki

Configu-ration:9N12P

Stator Diamter:12mm

Stator Length:2mm

Shaft Diameter:Φ1.5mm

Motor Dimension(Dia.*Len):Φ13.8mm*15.5mm

Magent specifications: N52H

Shift specifications: 2mm High strength steel

Bearing Specifications: d2*D5*H2.5 MR52zz Japan ISC Custom made

WindingSpecifications:180℃ Class Multiple oxygen-free copper

Weight(g):3.7g

No.of Cells(Lipo)：3S-4S

Flight control：

Flight controller：SI-F4FC Three-in-one tower Version:MATEKF411

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)

Sensor: MPU-6000(SPI connection)

Board size:21 * 21MM

Power supply: 2-4S battery input (DC 7-17V)

Built-in 12A(each) Blheli_S 4in1 ESC Dshot600 ready

Built-in Betaflight OSD(SPI Control)

Built-in Current meter Max 70A

Current meter scale set to 480

Built-in 5V 2A BEC

Built-in voltage detection

Onboard 4in1 ESC MCU upgraded to EFM8BB21

Power supply: 2-4S LiPo/LiPo HV (7v/17v)

Current: 12A continuous peak 13A (5 seconds)

Support BLHeliSuite programmable

Factory firmware: G_H_30_REV16_7.HEX

Default protocol: DSHOT600

Receiver：

External receiver matching:

compatible Frsky （ac900）SPI receiver

Frsky D16switchable

compatible futaba s-fhss switchable

Failsafe support

No ground interference ( Transmitter and receiver 1 m from the ground): 300m

Frsky Mini XM EU version SPI receiver

Frsky D16switchable

No ground interference ( Transmitter and receiver 1 m from the ground): 300m

compatible Flysky receiver Version SPI BUS receiver

Protocol：AFHDS-2A

Channels：14ch（AFHDS-2A）

No ground interference ( Transmitter and receiver 1 m from the ground): 300m

Failsafe support

spektrum External receiver（DSM2 DSMX ）

Power Input：3.3-5V Compatible

compatible ：DSM-X(stand by DSM2)Automatic retrieval

No ground interference ( Transmitter and receiver 1 m from the ground): 300m

PNP NO RX：No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc.

5.8g vtx transmitter：

VTX Output power：25~200mw switchable

Frequency：40CH

Input voltage: 3.2V- 5.2V

Current consumption: 320mA(type)

Power switching: third gear(25MW 、 100MW 、200MW)

Antenna: RG178s antenna

Frequency: 5.8GHz 5bands 40 channels

With Race band

Smartaudio ready

Weight:1.7g

Camera：

GL950PRO: 1/4 COMS sensor

Horizontal: 800TVL 800x600

TV system: ntsc 4:3 non-changeable

Power Input: DC 5-12V

FOV：F1.2
Colorful：0.1Lux(F1.2,50IRE,AGC ON)

Blackandwhite0.01Lux(F1.2,50IRE,AGCON)

Lens:m7

Signal to noise ratio:>50dB

Dynamic Range：>60dB

White balance：Auto white balance

image：color

BLC：stand by

Video format:NTSC

Weight:1.5g

Battery：

Lihv Battery Capacity:260mAh

Voltage:15.2v

Maximum charging voltage：Single section4.35v Total 17.4v

Continuous Discharge Rate：40C

Instantaneous discharge rate：80C

Size：52mm x25mmx12mm

Weight：31g

Connector：XT30

Features:

After long-term debugging and testing, we call it "Violence 75 X." The structure is reliable, lightweight, and boldly matched to the 4s 260mah lithium battery, with satisfactory control and powerful output performance during flight. The indoor environment crossing performance is very good. The new 1202 motor supports 3-4 s of power. The potential is huge. si-f4fc Flight controller 2-4s Lipo compatible，Powerful and smoothly

GL950PRO Camera ready

Camera Angle adjustable

VTX power switchable 25mw~200mw

Smartaudio ready , change VTX bands, powers, channels via OSD

Flight controllers are more flexible with an external receiver combination

NO RX Version supports players to freely match the receiver。

compatible 3s-4s Lipo / LIHV

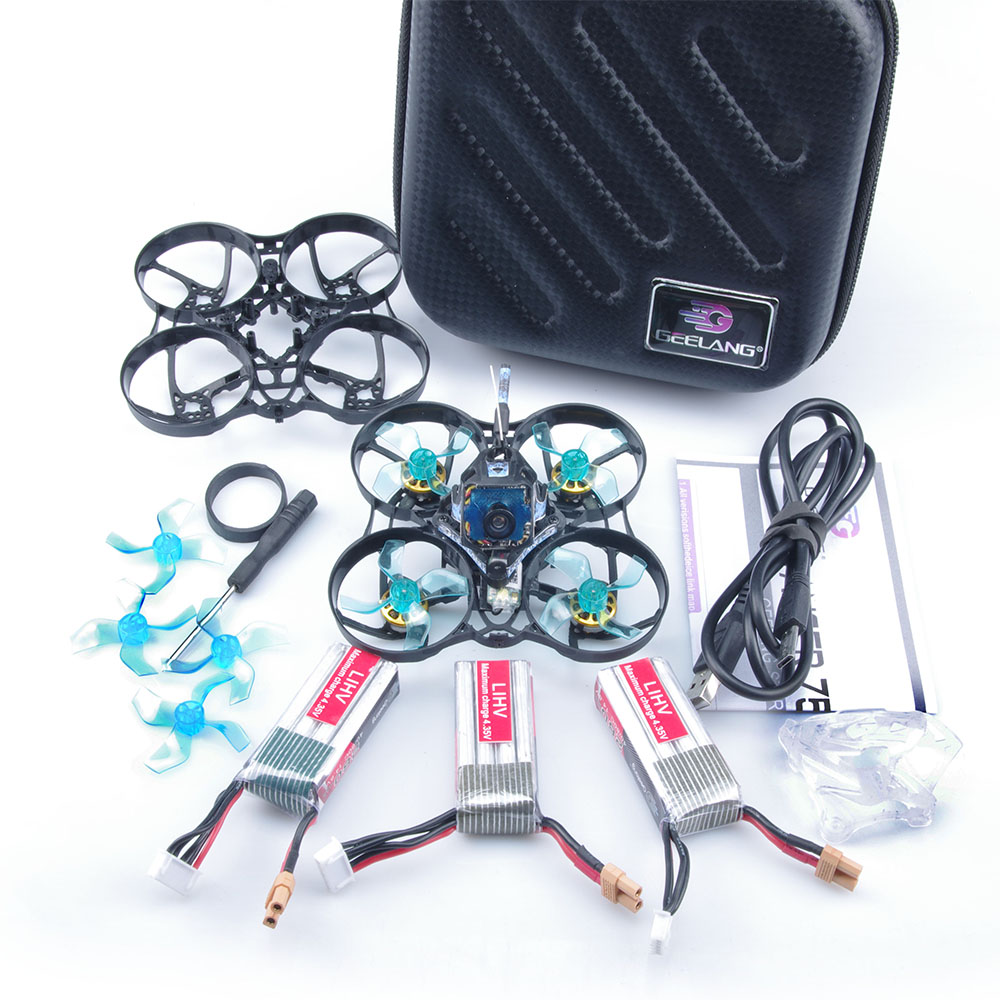

Package Included：

2 x 75X mm Frame

1 x Option1：SI-F4FC with external compatible Frsky ac900RX Compatible futaba

Option2：SI-F4FC with external Frsky miniXM EU version rx

Option3：SI-F4FC with external compatible Flysky RX
