GEELANG DJI Titan 120x whoop BNF/PNP caddx vista

Item Name: Titan 120x whoop
Wheelbase:120mm
Size:144mm *164mm * 46mm
Join the protection circle Size:152mm *172mm * 46mm
Weight: 98g (without battery)
Weight:116g(without battery Join the protection circle)
Contacts

Product Details

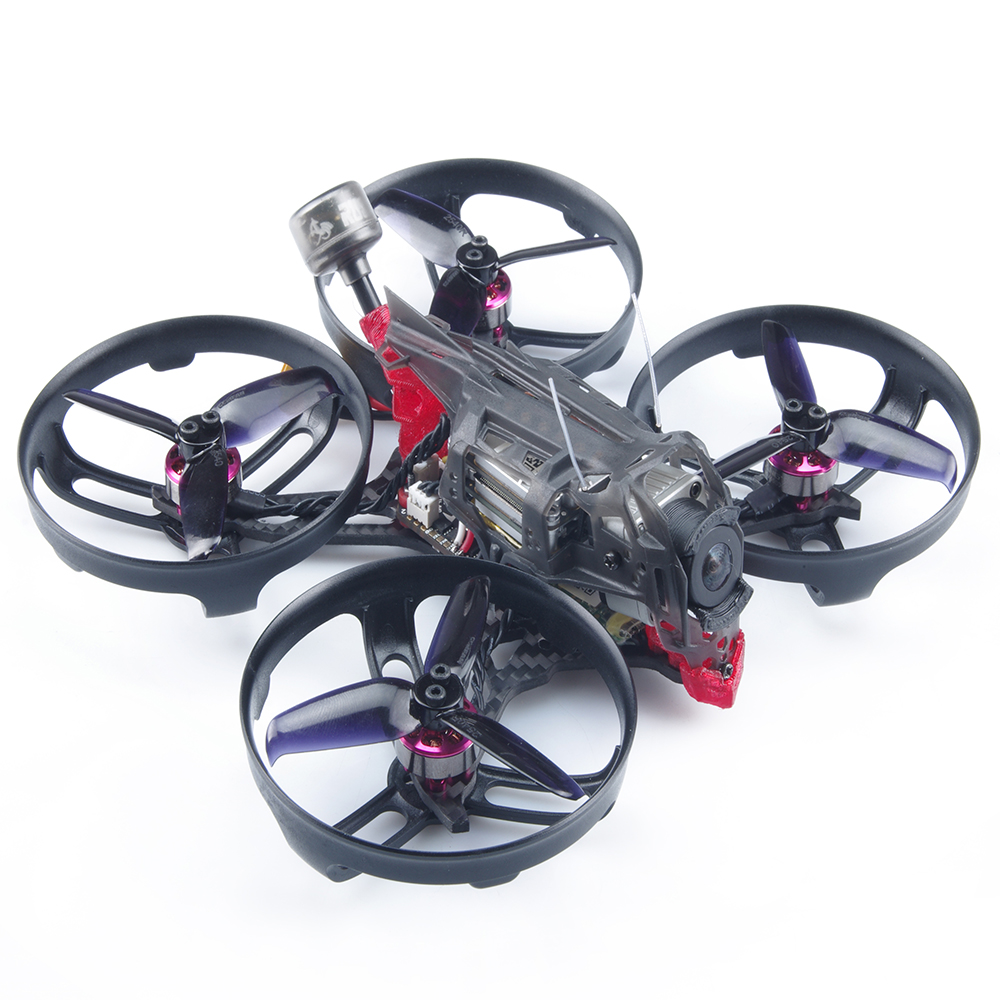

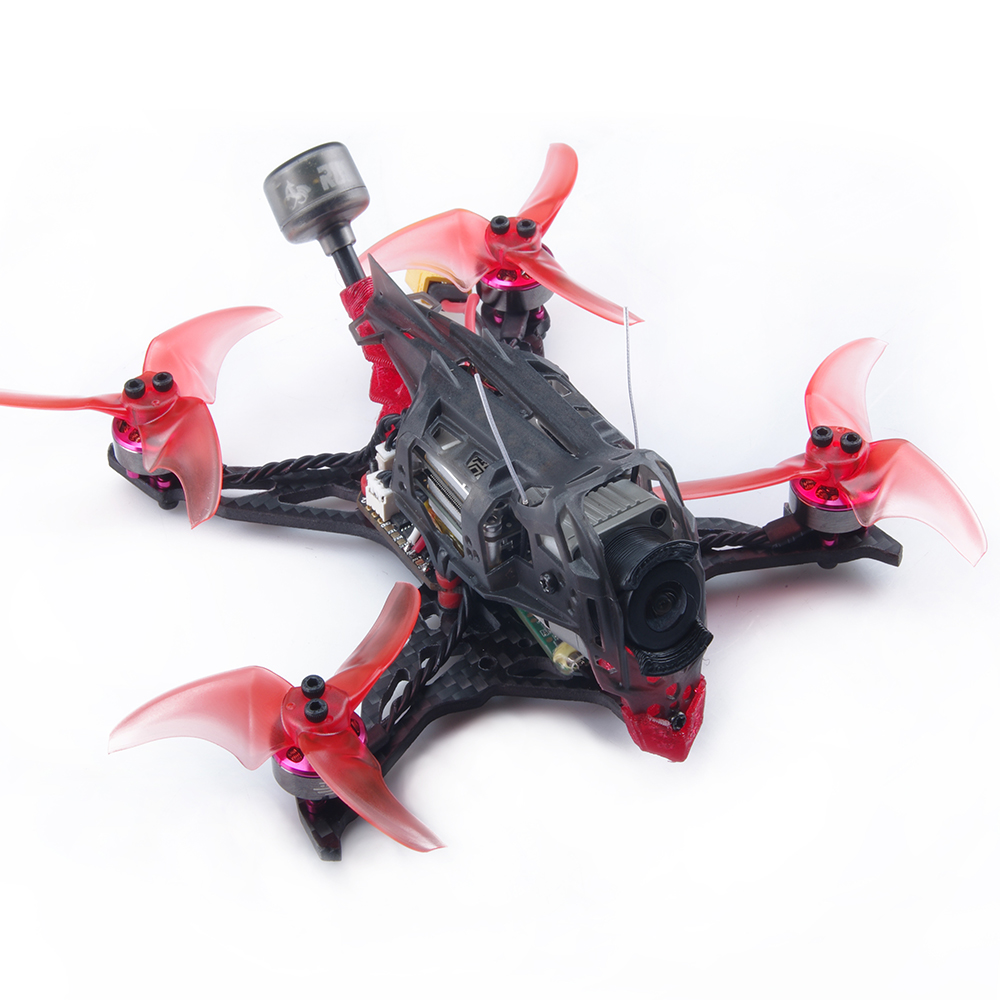

GEELANG DJI Titan 120x whoop  BNF/PNP  caddx vista



Co-manufacturer:GEELANG

Item Name: Titan 120x whoop

Wheelbase:120mm

Size:144mm *164mm * 46mm

Join the protection circle Size:152mm *172mm * 46mm

Weight: 98g (without battery)

Weight:116g(without battery Join the protection circle)



Motor

Spare parts specifications

Motor Mode:GL1204 KV4500

Stator specifications:D12 * H2 0.2mm Kawasaki

Configu-ration:9N12P

Stator Diamter:12mm

Stator Length:4mm

Shaft Diameter:Φ1.5mm                                          .

Motor Dimension(Dia.*Len):Φ16.0mm*15.8mm

Magent specifications: N52H

Shift specifications: 2mm High strength steel

Bearing Specifications: d2*D5*H2.5 MR52zz Japan ISC Custom made

Winding Specifications: 180℃ Class Multiple oxygen-free copper                                                    Weight(g):5.8g

No.of Cells(Lipo):3S-4S



FC

Flight controller:GEELANG FC GHF411AIO Version:MATEKF411

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)

Sensor: MPU-6000(SPI connection)

Board size:33 * 33MM

Power supply: 2-4S battery input (DC 7-17V)

Built-in 20A(each) BL he li S 4in1 ESC Dshot600 ready

Built-in Beta flight OSD(SPI Control)

Built-in Current meter Max 70A

Current meter scale set to 480

Built-in 5V 2A BEC

Built-in voltage detection

Built-in current sensor

Onboard 4in1 ESC MCU upgraded to EFM8BB21

Power supply: 2-4S LiPo/LiPo HV (7v/17v)

Current: 20A continuous peak 25A(5 seconds)

Support BL Heli Suite programmable

Factory firmware: G_H_30_REV16_7.HEX

Default protocol: DSHOT600



LED

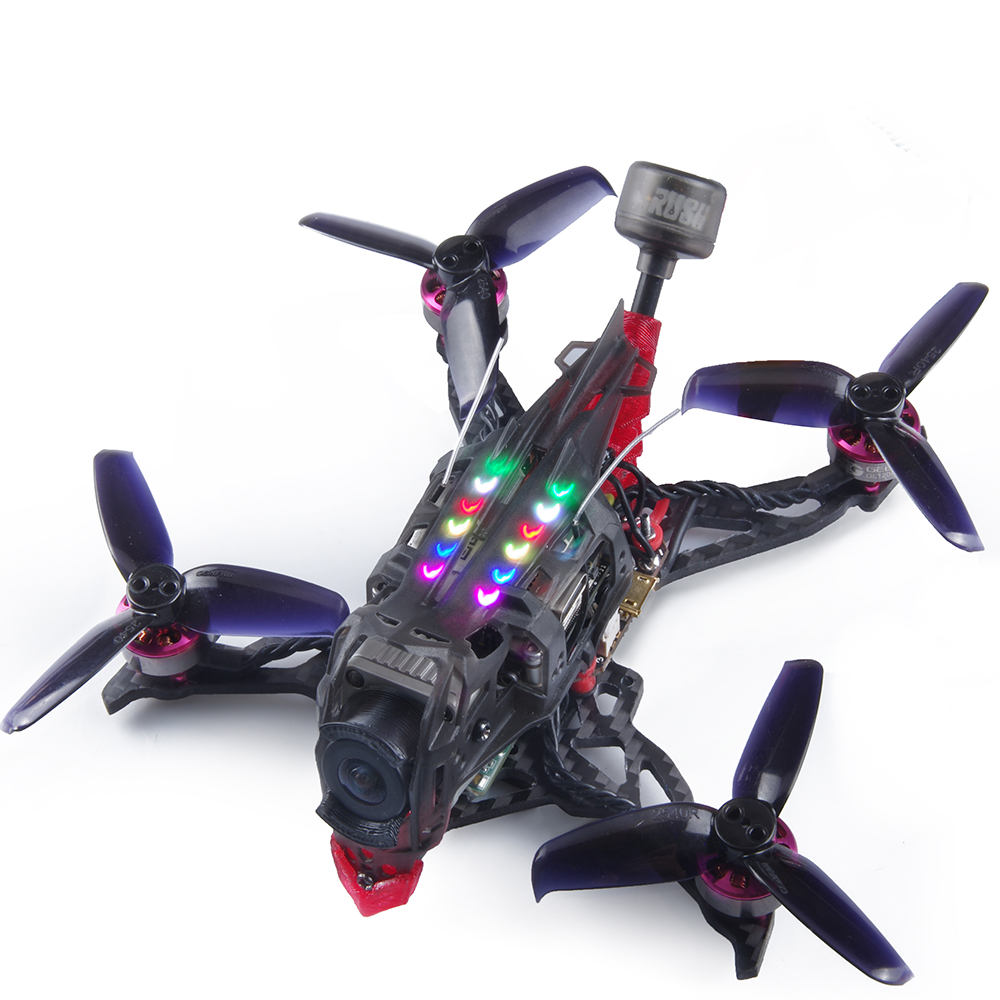

RGB LED dual lights, adjustable flight control bf software support



Receiver

Fr sky Mini XM+ EU version SPI receiver

Fr sky  D16 switchable

No ground interference ( Transmitter and receiver 1 m from the ground): 500m

TBS Crossfire version CRSF Protocol , Official TBS transmitter compatible

No ground interference ( Transmitter and receiver 1 m from the ground): 500m

Fr sky(ac900)SPI receiver D16switchable

compatible futaba s-fhss switchable

No ground interference ( Transmitter and receiver 1 m from the ground): 300m

PNP NO RX:No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc



Image transmission

  • Caddx vistaDimensions
    • Module: 30.45 x 29 x 13mm
    • Camera: 27.4 x 21.1 x 20.1mm
  • Weight: 29g (inc. camera); Module: 19g
  • Antenna Connector: u.FL
  • Operating Frequency: 5.725-5.85GHz
  • Transmitter Power (EIRP)
    • FCC/SRRC/MIC: <20dBm
    • CE: <14dBm
  • I/O Interface: USB-C, IPEX, 3-in-1 Port
  • Min. Latency: Low Latency Mode (720p 120fps): 21-28ms
    • High-Quality Mode (720p 60fps): 30-40ms
    • Max Transmission Distance: FCC/SRRC: 4km; CE: 0.7km
  • Input Power: 7.4-26.4v

DJI Camera

  • Sensor: 1/3.2" CMOS
  • Effective Pixel: 4M
  • Lens: 2.1mm f/2.1
  • Shutter: Rolling Shutter
  • ISO: 100-25600
  • FOV: 150(D);122(H);93(V)
  • The ground end must be used DJI FPV Goggles

窗体





Battery

Highly recommend the use of 4s 450mah, 4s 650mah, 4s750mah、4s 850mah high voltage lithium batteries

Package Included

1x Option1:GEELANG GHF411AIO with external Fr sky XM+ EU version rx

Option2:  GEELANG GHF411AIO with external TBS Crossfire Nano RX

Option3:GEELANG GHF411AIO with external AC900 Compatible with futaba version rx

Option4:GEELANG GHF411AIO NO RX

4 x 1204 4500KV  Motor

1 x CADDX  VISTA

2 x 2.5 Inch propeller(2cw + 2ccw)63mm diameter(EIMX/HQ)EIMX AVAN out of stock will match hqt2.5x2.5x3

1 x screwdriver

2 x Battery fixing elastic band

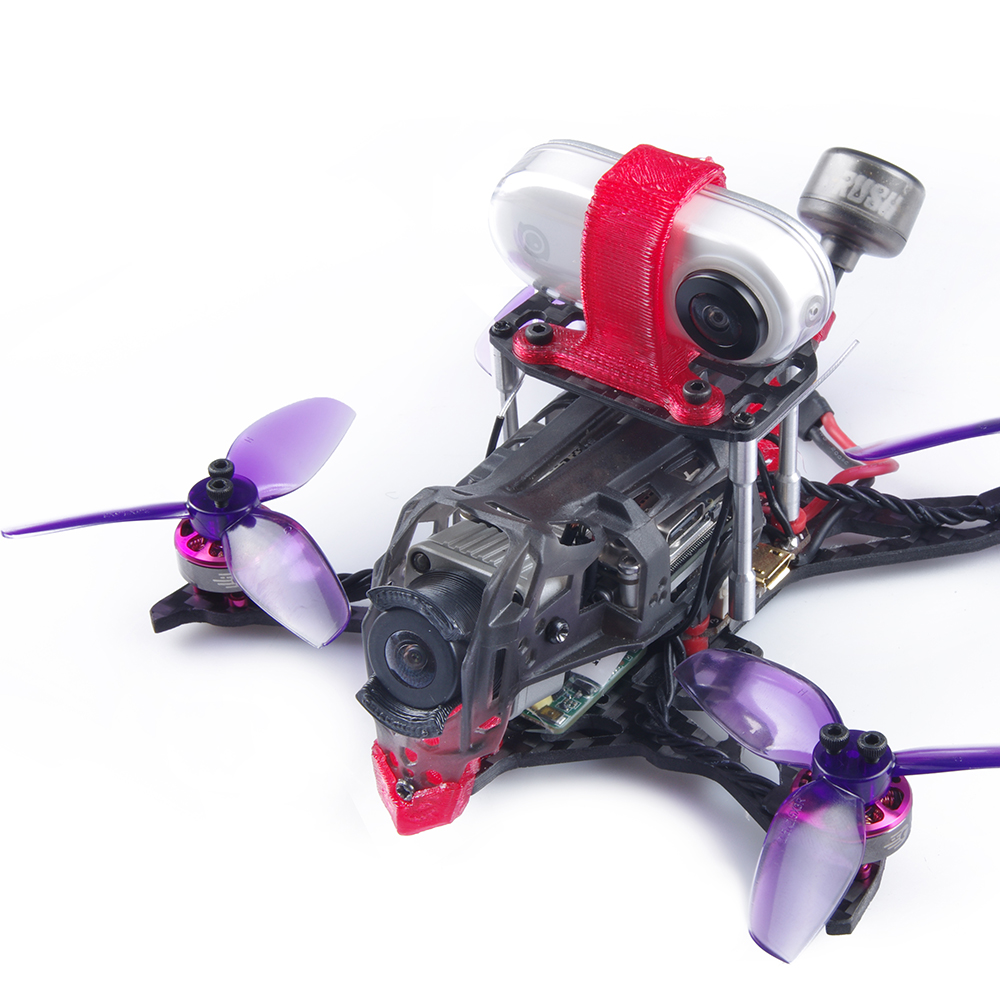

1 x tpu 360 camera mount

4xProtection ring

1xSpare helmet
