Lightning120x whoop 2-3S FPV Racing Drone BNF / PNP SI-F4FC RUNCAM NANO2 Specifications

tem Name：Lightning120x whoop

Wheelbase：120mm
Size：85mm * 85mm * 37mm
Weight：60g （without battery）
Weight：102g（with Original 4s 450mah 80C Lipo battery）

Contacts

Product Details

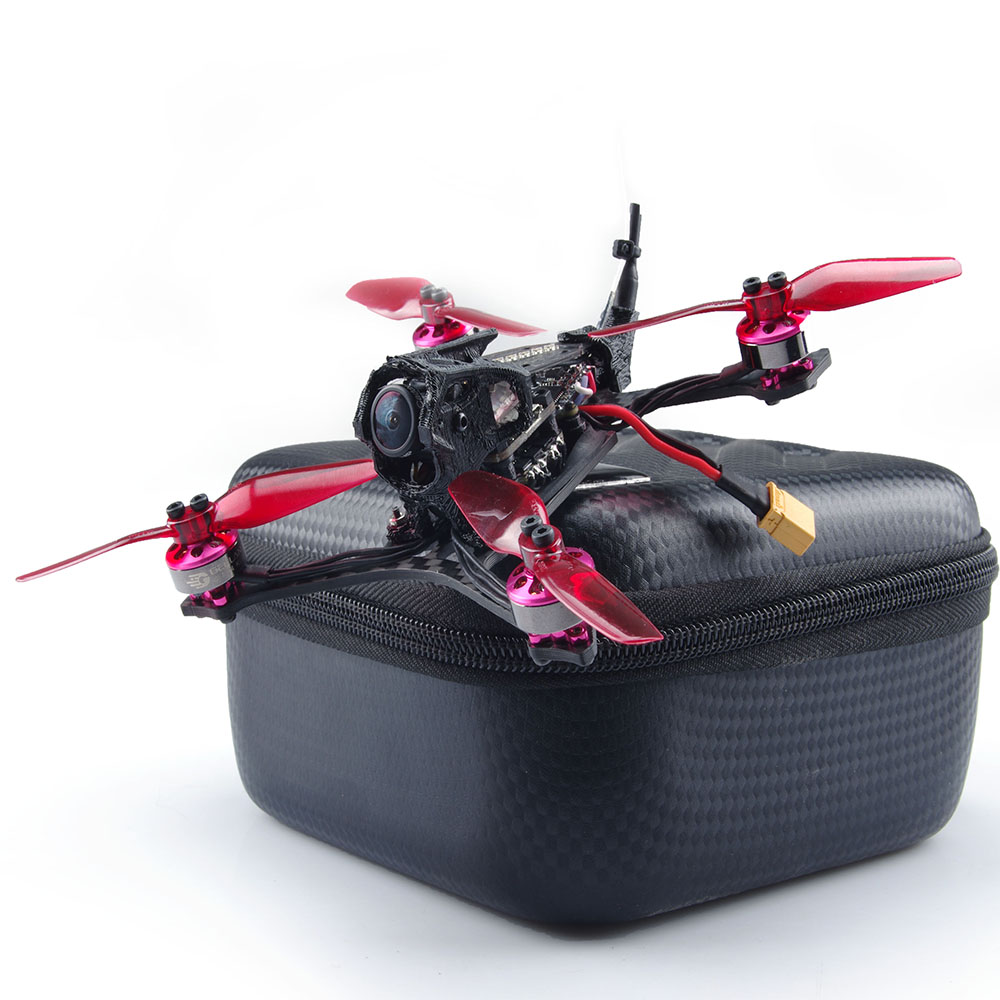

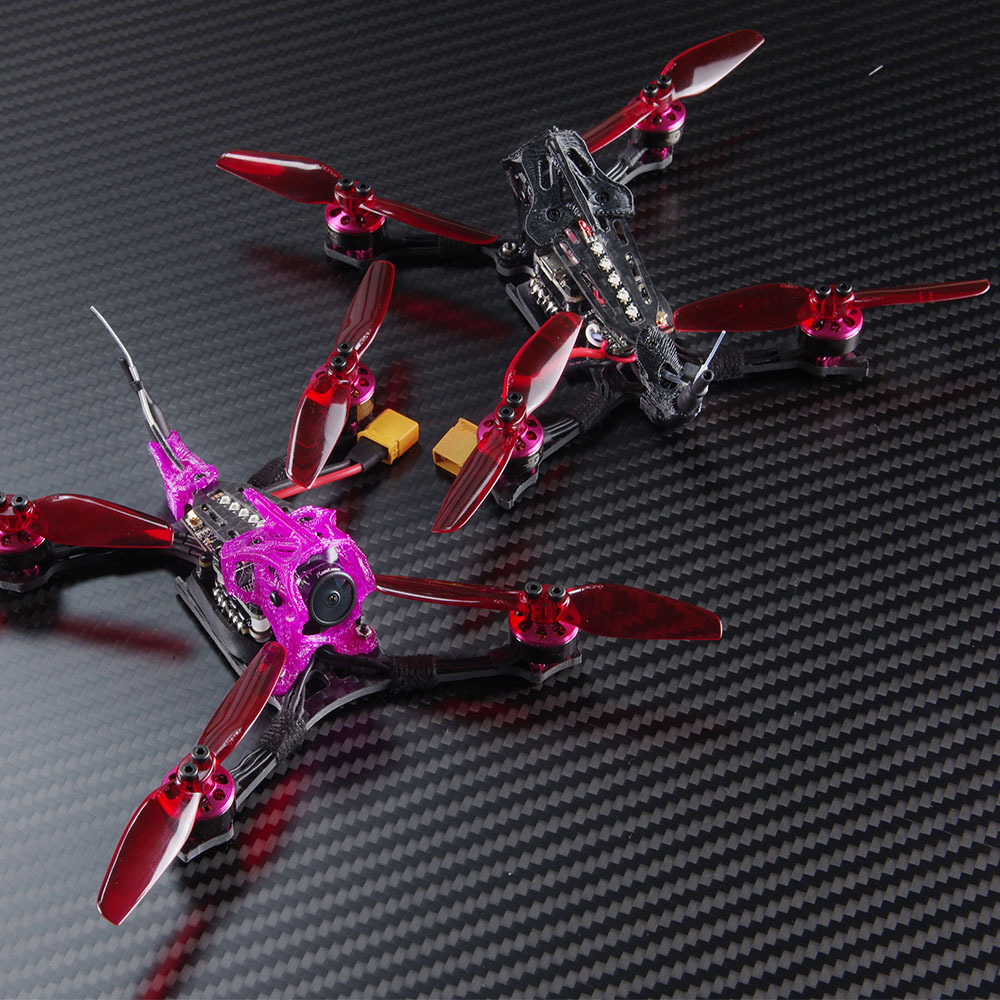

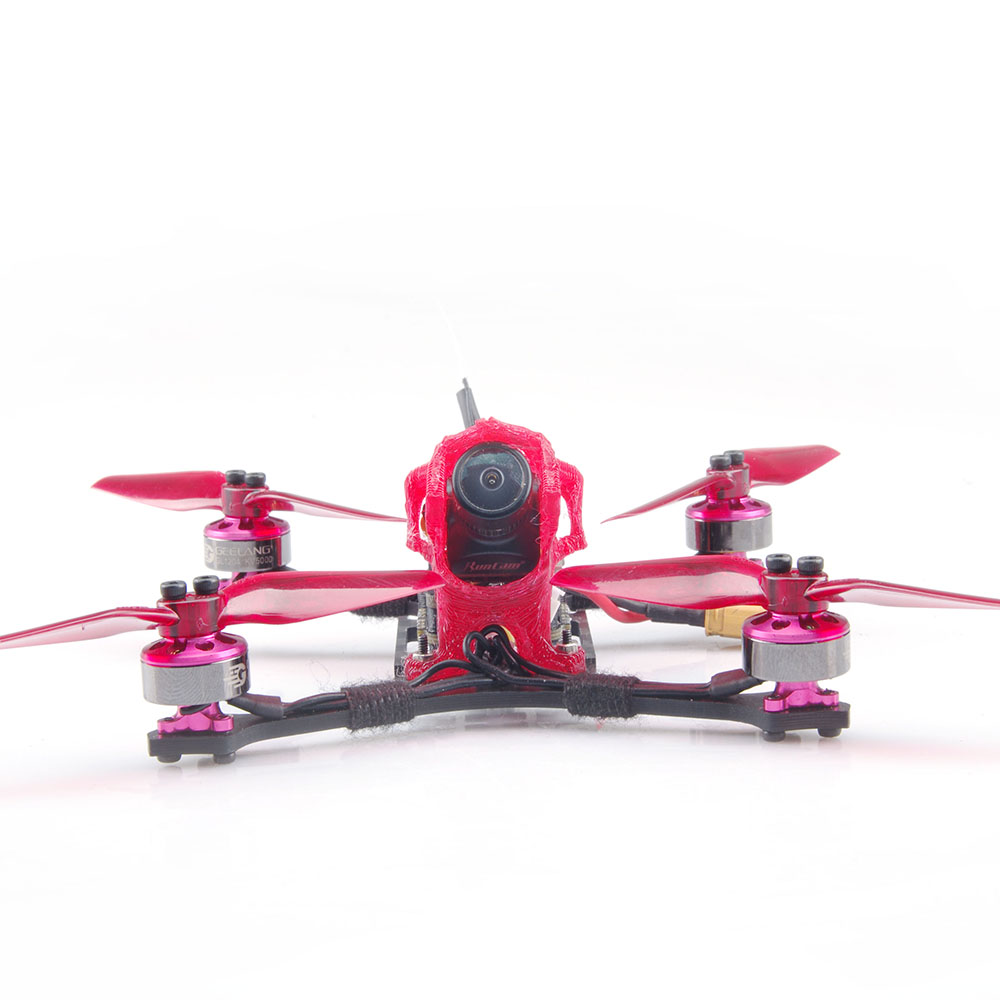

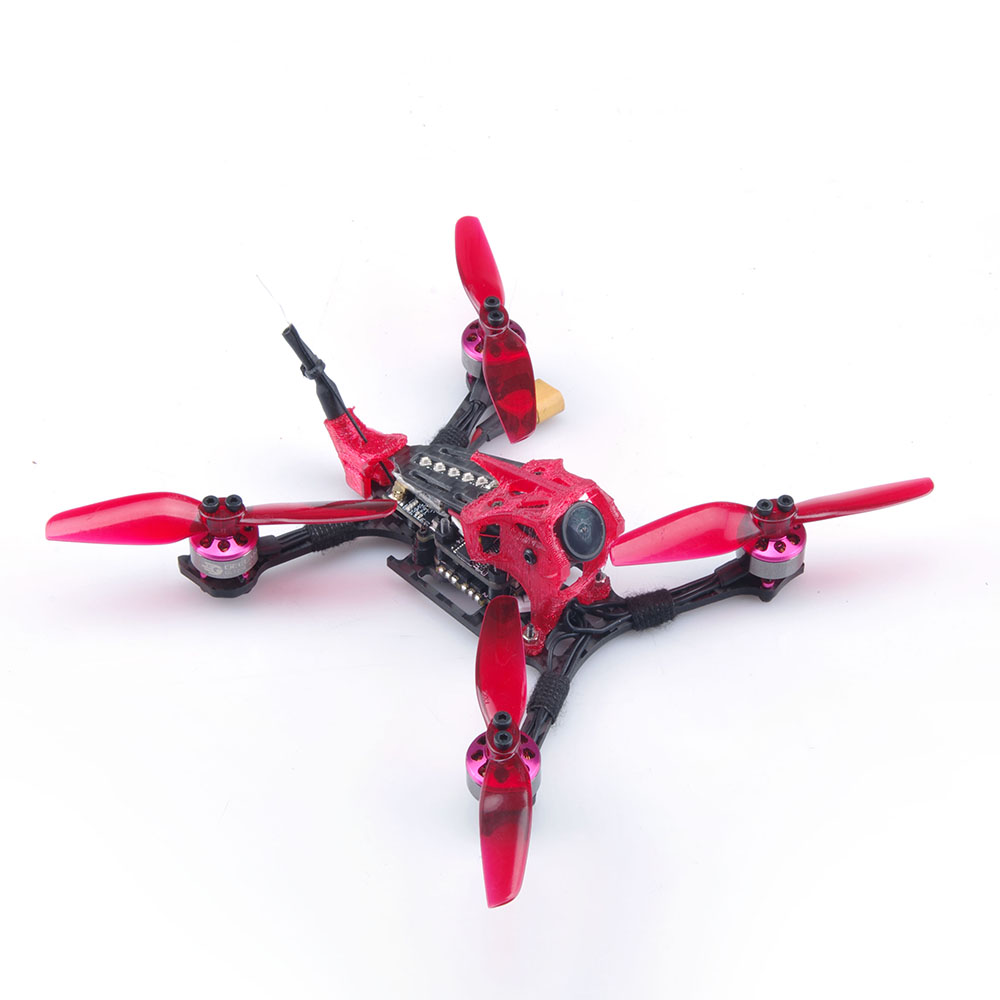

Lightning120x whoop 2-3S FPV Racing Drone BNF / PNP SI-F4FC RUNCAM NANO2

Specifications

Brand Name：Geelang

Item Name：Lightning120x whoop

Wheelbase：120mm

Size：85mm * 85mm * 37mm

Weight：60g （without battery）

Weight：102g（with Original 4s 450mah 80C Lipo battery）

Spare parts specifications：

Motor Mode：GL1204 KV5000

Stator specifications：D12 * H4 0.2mm Kawasaki

Configu-ration:9N12P

Stator Diamter:12mm

Stator Length:4mm

Shaft Diameter:Φ1.5mm

Motor Dimension(Dia.*Len):Φ16.0mm*15.8mm

Magent specifications: N52H

Shift specifications: 2mm High strength steel

Bearing Specifications: d2*D5*H2.5 MR52zz Japan ISC Custom made

WindingSpecifications:180℃ Class Multiple oxygen-free copper

Weight(g):5.8g

No.of Cells(Lipo)：3S-4S

Flight control：

Flight controller：SI-F4FC Three-in-one tower Version:MATEKF411

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)

Sensor: MPU-6000(SPI connection)

Board size:21 * 21MM

Power supply: 2-4S battery input (DC 7-17V)

Built-in 12A(each) Blheli_S 4in1 ESC Dshot600 ready

Built-in Betaflight OSD(SPI Control)

Built-in Current meter Max 70A

Current meter scale set to 480

Built-in 5V 2A BEC

Built-in voltage detection

Onboard 4in1 ESC MCU upgraded to EFM8BB21

Power supply: 2-4S LiPo/LiPo HV (7v/17v)

Current: 12A continuous peak 13A (5 seconds)

Support BLHeliSuite programmable

Factory firmware: G_H_30_REV16_7.HEX

Default protocol: DSHOT600

Receiver：

External receiver matching:

compatible Frsky （ac900）SPI receiver

Frsky D16switchable

compatible futaba s-fhss switchable

Failsafe support

No ground interference ( Transmitter and receiver 1 m from the ground): 300m

Frsky Mini XM+ EU version SPI receiver

Frsky D16switchable

No ground interference ( Transmitter and receiver 1 m from the ground): 300m

compatible Flysky receiver Version SPI BUS receiver

Protocol：AFHDS-2A

Channels：14ch（AFHDS-2A）

No ground interference ( Transmitter and receiver 1 m from the ground): 300m

Failsafe support

spektrum External receiver（DSM2 DSMX ）

Power Input：3.3-5V Compatible

compatible ：DSM-X(stand by DSM2)Automatic retrieval

No ground interference ( Transmitter and receiver 1 m from the ground): 300m

TBS Crossfire version CRSF Protocol , Official TBS transmitter compatible No ground interference ( Transmitter and receiver 1 m from the ground): 500m

PNP NO RX：No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc.

5.8g vtx transmitter：

VTX Output power：25~200mw switchable

Frequency：40CH

Input voltage: 3.2V- 5.2V

Current consumption: 320mA(type)

Power switching: third gear(25MW 、 100MW 、200MW)

Antenna: RG178s antenna

Frequency: 5.8GHz 5bands 40 channels

With Race band

Smartaudio ready

Weight:1.7g

Camera：

RUN CAM NANO2 Image sensor: 1/3 COMS sensor

Horizontal:700TVL

TV system: PAL 4:3 non-changeable

Power Input: DC 5-12V

FOV:F2.1

Weight:3.2g

Battery：Highly recommended 3s 450mah high voltage lithium battery

Features:

Professional H-type competition mode. High-strength, lightweight hybrid rack, powerful tpu soft cover, with RGB LED lights, colorful lights, full of personality, powerful 1204 kv5000 motor output, 3-inch 75 mm propeller super high efficiency, waiting for your control, Lightning 120 X

RUNCAM nano2 Camera ready

Camera Angle adjustable

VTX power switchable 25mw~200mw

Smartaudio ready , change VTX bands, powers, channels via OSD

Flight controllers are more flexible with an external receiver combination

NO RX Version supports players to freely match the receiver。

compatible 2s-3s Lipo / LIHV

Package Included：

1 x Option1：SI-F4FC with external compatible Frsky ac900RX Compatible futaba

Option2：SI-F4FC with external Frsky miniXM+ EU version rx

Option3：SI-F4FC with external compatible Flysky RX

Option4：SI-F4FC with external compatible spektrum Receiver DSM2 DSMX Option5: SI-F4FC with external TBS Crossfire Nano RX
