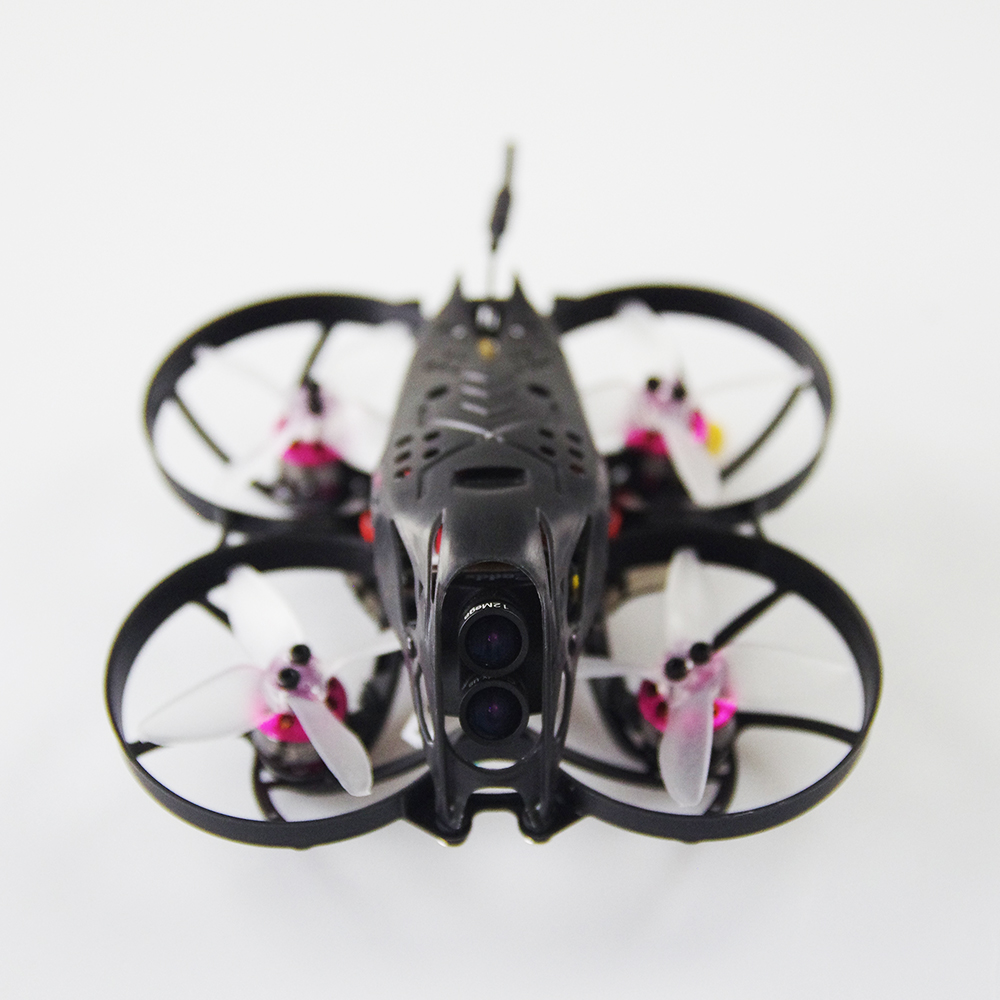

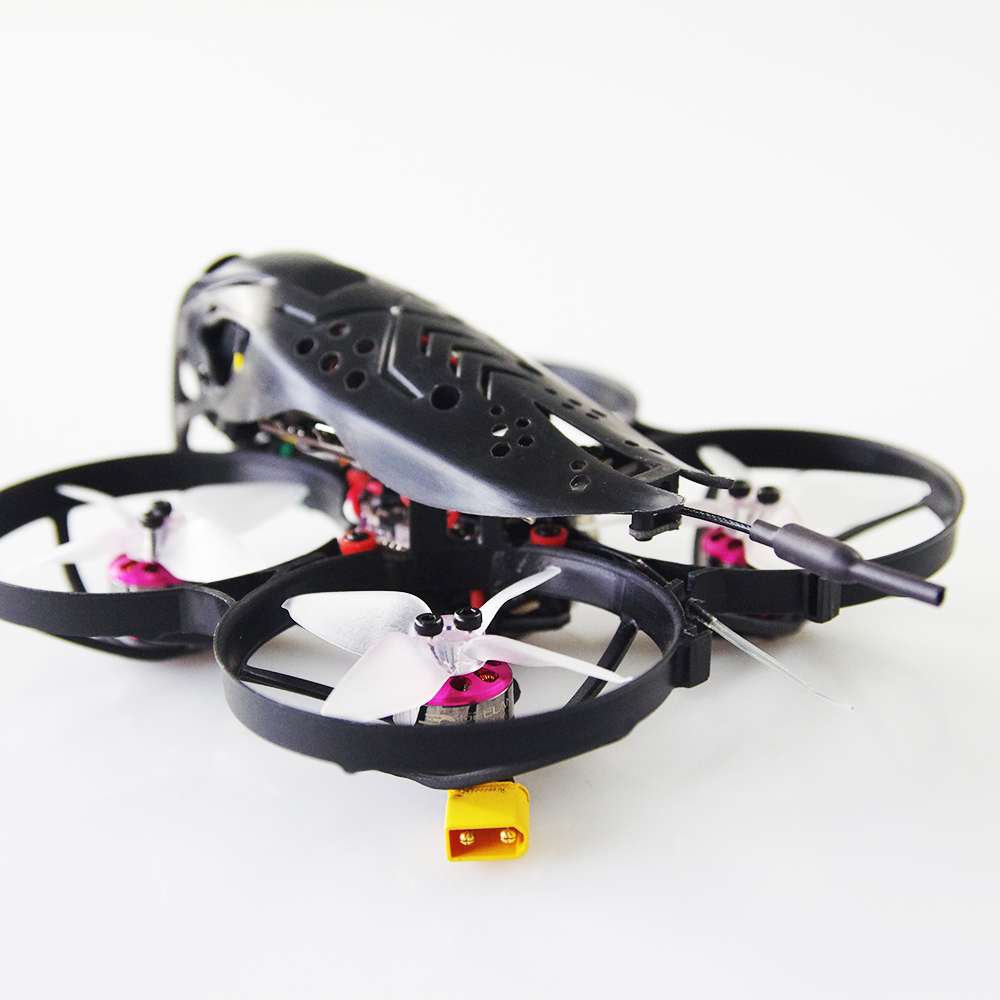

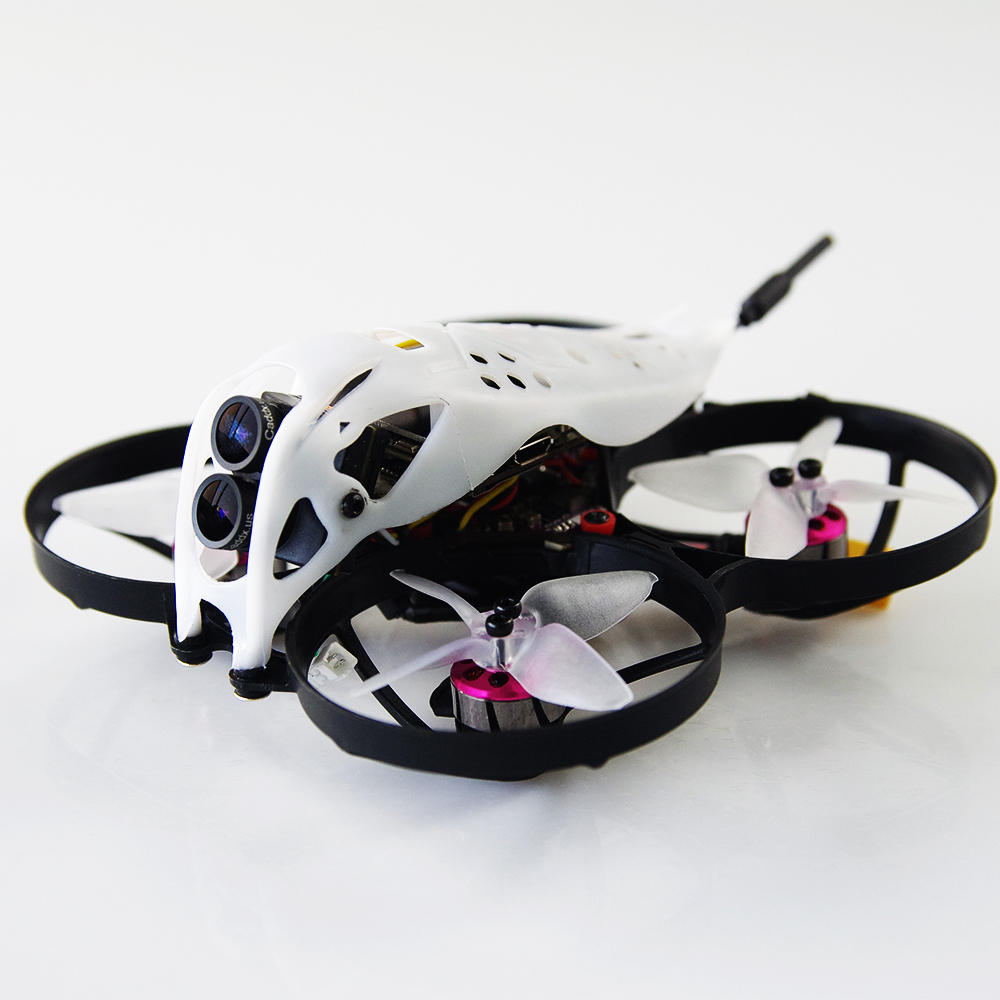

UFO-85X 4K Hollywood Cine whoop 3-4S FPV Racing Drone BNF / PNP SUPRA F4 Caddx Tarsier V2 Cam DVR

Brand Name：Geelang

Item Name：UFO-85X 4K Hollywood Cine whoop

Heel base：85mm

Size：118mm * 118mm * 56mm

Weight：79.2.g （without battery）

Weight：130.7g（Best match 4s 450mah lipo battery）

Motor

Motor Mode：GL1204 KV5000

Stator specifications：D12 * H4 0.2mm Kawasaki

Configu-ration:9N12P

Stator Diamter:12mm

Stator Length:4mm

Shaft Diameter:Φ1.5mm

Motor Dimension(Dia.*Len):Φ16.0mm*15.8mm

Magent specifications: N52H

Shift specifications: 2mm High strength steel

Bearing Specifications: d2*D5*H2.5 MR52zz Japan ISC Custom made

WindingSpecifications:180℃ Class Multiple oxygen-free copper

Weight(g):5.8g

No.of Cells(Lipo)：3S-4S

Flight control

Flight controller：supra f4

Version:MATEKF411 4.0.2(4.0.3)

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)

Sensor: MPU-6000(SPI connection)

Board size:28.5 * 28.5MM

Power supply: 2-4S battery input (DC 7-17V)

Built-in 12A(each) Blheli_S 4in1 ESC Dshot600 ready

Built-in Betaflight OSD(SPI Control)

Built-in Current meter Max 70A

Current meter scale set to 480

Built-in 5V 2A BEC

Built-in voltage detection

Onboard 4in1 ESC MCU upgraded to EFM8BB21

Power supply: 2-4S LiPo/LiPo HV (7v/17v)

Current: 12A continuous peak 13A (5 seconds)

Support BLHeliSuite programmable

Factory firmware: G_H_30_REV16_7.HEX

Default protocol: DSHOT600

Receiver

External receiver matching:

compatible Frsky （ac900）SPI receiver

Frsky  D16switchable

compatible futaba s-fhss switchable

Failsafe support

No ground interference ( Transmitter and receiver 1 m from the ground): 300m

Frsky xm+ SPI receiver

Frsky  D16switchable

Failsafe support

No ground interference ( Transmitter and receiver 1 m from the ground): 300m

compatible Flysky receiver Version SPI IBUS receiver

Protocol：AFHDS-2A

Channels：14ch（AFHDS-2A）

No ground interference ( Transmitter and receiver 1 m from the ground): 300m

Failsafe support

spektrum External receiver（DSM2 DSMX ）

Power Input：3.3-5V Compatible

compatible ：DSM-X(stand by DSM2)Automatic retrieval

No ground interference ( Transmitter and receiver 1 m from the ground): 300m

TBS Crossfire version CRSF Protocol , Official TBS transmitter compatible

PNP NO RX：No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc.

5.8g vtx transmitter

VTX Output power：25~200mw switchable

Frequency：40CH

Input voltage: 3.2V- 5.2V

Current consumption: 320mA(type)

 Power switching: third gear(25MW 、 100MW 、200MW)

Antenna: RG178s antenna

Frequency: 5.8GHz 5bands 40 channels

With Race band

Smartaudio ready

Weight:2g

Camera

CADDX Tarsier v2 Image sensor: Sony sensor 12M, 1/1.8inch, 1/2.9inch

Horizontal: 1200TVL

TV system: NTSC/PAL changeable

Video Resolution: 4K/30FPS 16:9

                  2.7K / 60FPS 4：3 ，16:9

                  1440P / 60FPS，30FPS 4：3

                  1080P / 90FPS，60FPS，30FPS 16：9

                  720P / 120FPS 16：9

Power Input: DC 5-12V

FOV：4K F2.8,150 °（16：9）165°（4：3）

Weight:18g

Dimension: Camera 19x20mm / DVR 29x29mm

Dimension: Camera F2.8 / 12Mega

Audio: Dual Digital MIC

CPU: DUAL Core dual system

Battery：4s 450mah is recommended

Featured introduction

Features:

The 4K racing drone with the same level as the Beta85X 4K is lighter.

Newly adopted 1204motor More efficient, feel better, more delicate。

brand new supra F4 Flight controller 2-4s Lipo compatible，Powerful and smoothly。

Side effects RGB led Dual light bar compatible with flight control adjustable play mode

Caddx Tarsier 4K Camera & DVR ready

Betaflight OSD support ,easy to get RSSI, Voltage ,current from your goggles

Camera Angle adjustable

VTX power switchable 25mw~200mw

Smartaudio ready , change VTX bands, powers, channels via OSD

Flight controllers are more flexible with an external receiver combination

NO RX Version supports players to freely match the receiver。

compatible 3s-4s Lipo / LIHV

Package Included：

2 x 85X mm Frame

Option1：supra f4 with external compatible Frsky ac900RX Compatible futaba

Option2：supra f4 with external Frsky xm+(For Europe)

Option3：supra f4 with external compatible Flysky RX

Option4：supra f4 with external TBS Crossfire Nano RX

Option5：supra f4 with external compatible spektrum Receiver DSM2DSMX

Option6：supra f4 pnp NO RX

4 x 1204 5000KV  Motor

1 x 2 Inch propeller（4cw + 4ccw）

1 x Caddx Tarsier 4K Camera v2

1 x 5.8G 40ch 25mw~ 200mw VTX

1 x Propeller disassemble tool

1 x screwdriver

1 x ND8 Filter on the camera

1 x usb Data line

1x Battery fixing elastic band

   1 x package
