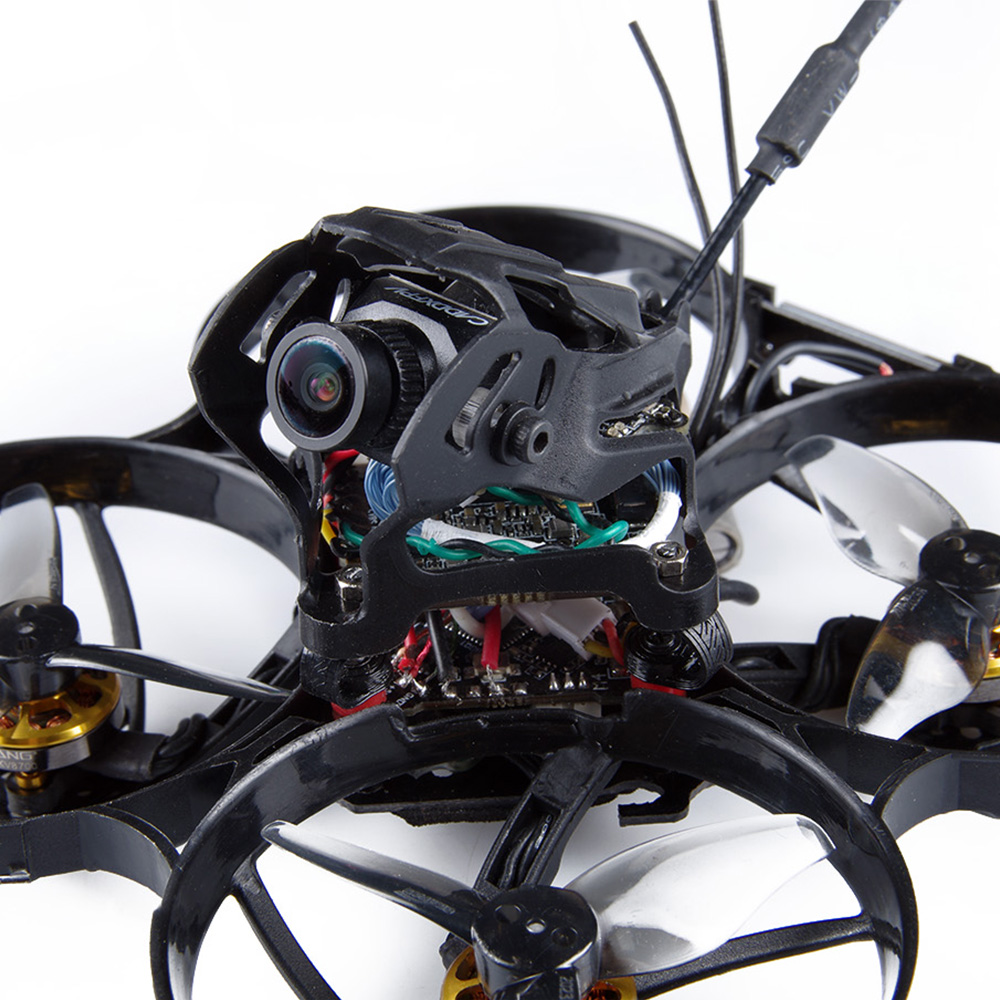

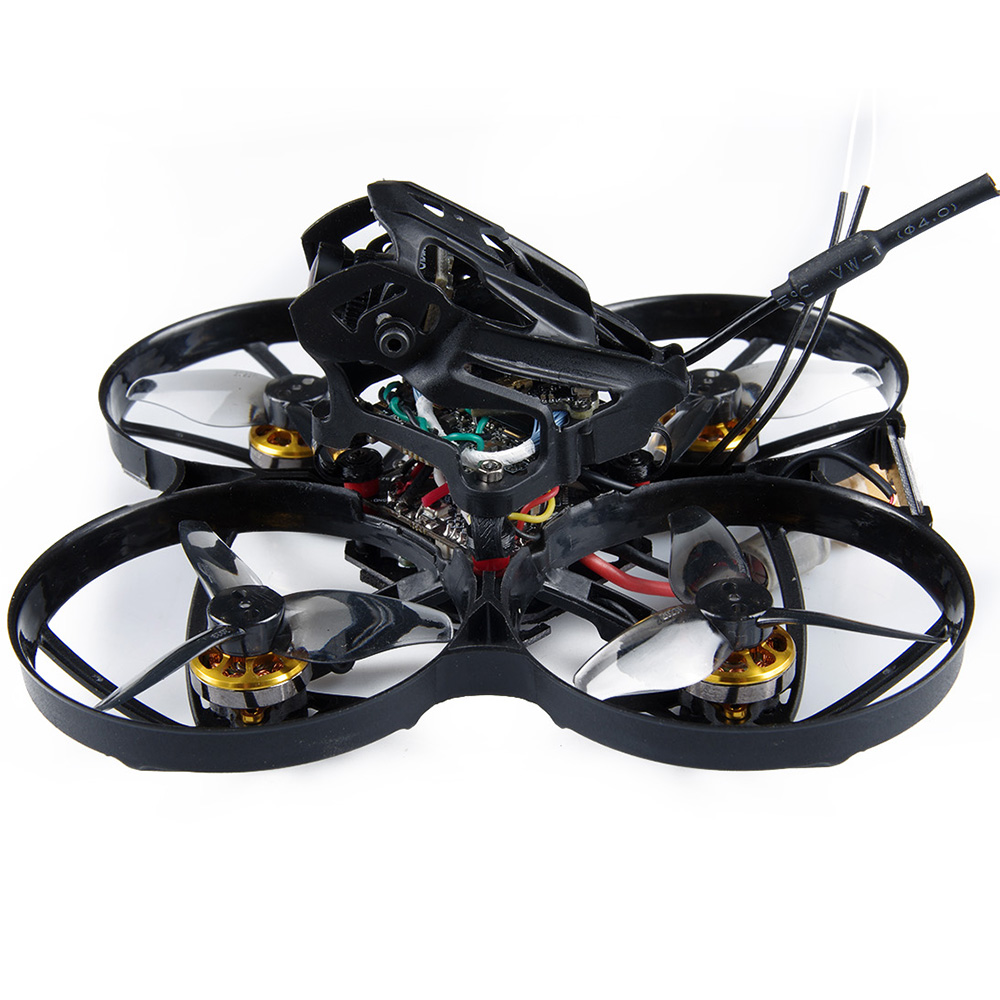

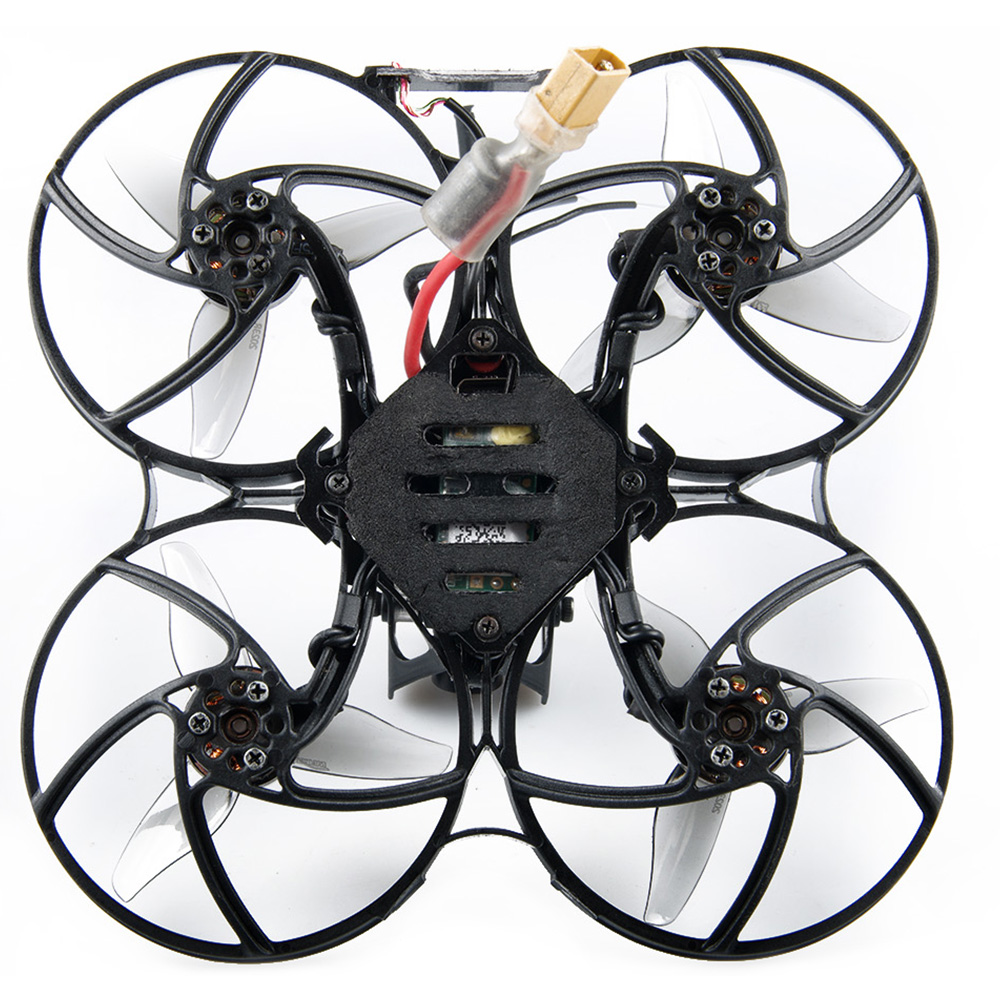

ANGER 85X 1080P HD Cine whoop 2-3S FPV Racing Drone Baby Turtle Whoop version 1080 fpv camera

Brand Name：Geelang
Item Name： Anger 85x 1080P HD Cine whoop
Wheelbase：85mm
Size：118mm * 118mm * 70mm
Weight：59g （without battery）
Best with 3S 450mAh lithium battery, flight time can reach 6 minutes 30 seconds -7 minutes

Contacts

Product Details

ANGER 85X 1080P HD Cine whoop 2-3S FPV Racing Drone Baby Turtle Whoop version

1080 fpv camera

Specifications

Brand Name：Geelang

Item Name： Anger 85x 1080P HD Cine whoop

Wheelbase：85mm

Size：118mm * 118mm * 70mm

Weight：59g （without battery）

Best with 3S 450mAh lithium battery, flight time can reach 6 minutes 30 seconds -7 minutes

Motor

Motor Mode：GL1202 KV8700

Stator specifications：D12 * H4 0.2mm Kawasaki

Configu-ration:9N12P

Stator Diamter:12mm

Stator Length:2mm

Shaft Diameter:Φ1.5mm

WindingSpecifications:180℃ Class Multiple oxygen-free copper

Weight(g):3.4g

No.of Cells(Lipo)：2S-3S

propeller: gemfan 2030-3

FC：

Name: SH50AF4 MATEKF411

MCU: STM32F411CEU6 (100MHZ, 512K flash memory)

Sensor: MPU-6000 (SPI connection)

Shop: 8MB black box onboard

Board size: 28.5 * 28.5MM

Power supply: 2-3S battery input (DC 7-12.6V)

Built-in 5A (each) Blheli_S 4 in 1 ESC Dshot600 ready

Built-in Betaflight OSD (SPI control)

Built-in 5V 2A BEC

Built-in voltage detection

The onboard 4-in-1 ESC MCU is upgraded to EFM8BB21

Power supply: 2-3S LiPo / LiPo HV (7v / 12.6v)

Current: 5A continuous peak value 7A (5 seconds)

Support BLHeliSuite programmable

Factory firmware: G_H_50_REV16_77.HEX

Default protocol: DSHOT600

Receiver：

External receiver matching:

compatible Frsky （ac900） receiver

Frsky D16switchable

compatible futaba s-fhss switchable

Failsafe support

No ground interference ( Transmitter and receiver 1 m from the ground): =300m

Frsky XM+ version receiver

Frsky XM+ LBT-D16 mode (need to download and use firmware in frsky)

No ground interference ( Transmitter and receiver 1 m from the ground): >300m

Failsafe support

compatible Frsky d8 R1mini version receiver

No ground interference ( Transmitter and receiver 1 m from the ground): >300m

Failsafe support

compatible Flysky receiver Version IBUS receiver

Protocol：AFHDS-2A

Channels：14ch（AFHDS-2A）

No ground interference ( Transmitter and receiver 1 m from the ground):= 300m

Failsafe support

Compatible DSMX receiver version receiver

No ground interference (the transmitter and receiver are 1 m away from the ground): = 300m

TBS Crossfire version : TBS Crossfire Nano RX

CRSF Protocol , Official TBS transmitter compatible No ground interference ( Transmitter and receiver 1 m from the ground): >300m

Failsafe support

PNP NO RX：No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc.

5.8 grams of VTX:

VTX output power: 25~200mw adjustable

Frequency: 40CH

Input voltage: 3.2V- 5.2V

Current consumption: 320mA (type)

Power switching: three gears (25MW, 100MW, 200MW)

Antenna frequency: 5.8GHz 5 frequency band 40 channels

Band competition

Ready for smart audio

Weight: 1.9 g

LED: RGB LED light strip, adjustable flight control

camera:

Name: CADDX little turtle v2 whoop version

Resolution: 800TVL

Video standard: 1080p 60fps

Field of view: 170 degrees

Screen size: 4:3, 16:9

Maximum supported recording capacity: 64g u1

Power supply: 5v-20v

Current: 12v / 160ma

Weight: 9g

Battery：

Best with 3S 450mAh lithium battery

flight time can reach 6 minutes -7 minutes

Product Features Introduction

ANGER85 1080pHD version is currently the most cost-effective high-definition high-definition DVR function line mini multi-axis traversing machine, unique super shock absorption performance, solves the high-frequency jitter problem of most plastic racks, and records clear videos to obtain Get rid of the UV mirror. The image quality is perfectly preserved. As the problem of high-frequency jitter is completely eliminated, it can even make full use of the shooting performance of the backlight chasing the sun. It can be considered that it will not lose to professional sports cameras such as gopro6. The best partner of 1202 electric motor and 2030 three-blade propeller uses 3s450mah battery, and the flight time is more than 6 to 7 minutes. The time is very efficient, the throttle is sensitive, and the control is free. It provides enough confidence for aerial photography. The personalized LED taillights are full of personality. A new experience is waiting for you

Package Included:

1 x anger85x

Option 1: Externally compatible with ac900RX and compatible with futaba and frsky

Option 2: With external Frsky XM + EU version RX

Option 3: Flysky RX with external compatibility

Option 4: With external compatible dsmx receiver

Option 5: With external compatible TBS receiver

Option 6: No receiver

4 x 1202 KV8700

1 x 2 inch propeller (4cw + 4ccw) gemfan durable 2030 three-blade propeller

1 x Caddx Turtle and Turtle v2 camera

1 x 5.8G 40ch 25mw~200mw VTX
