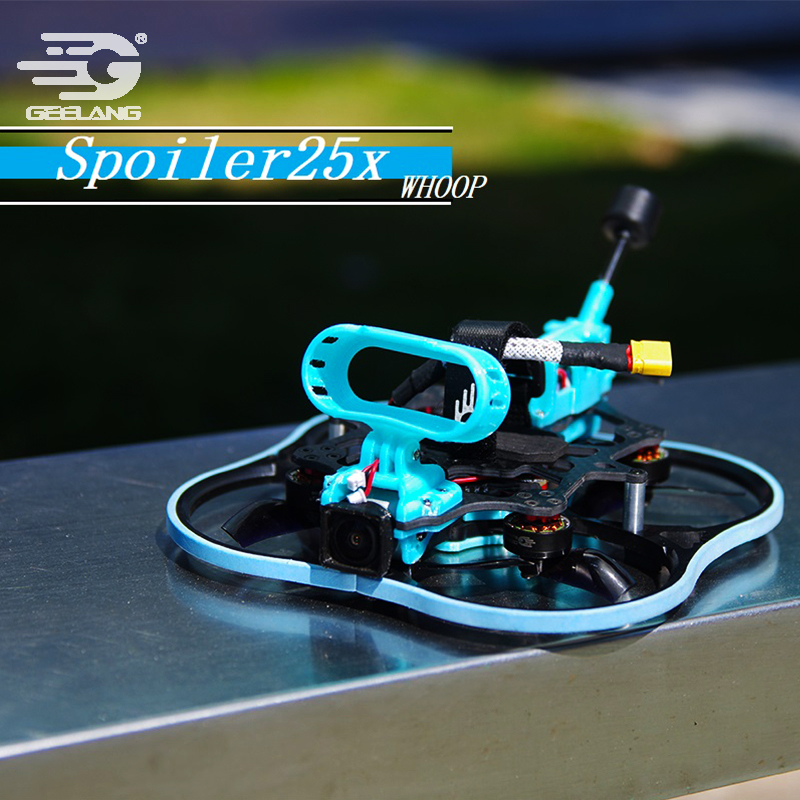

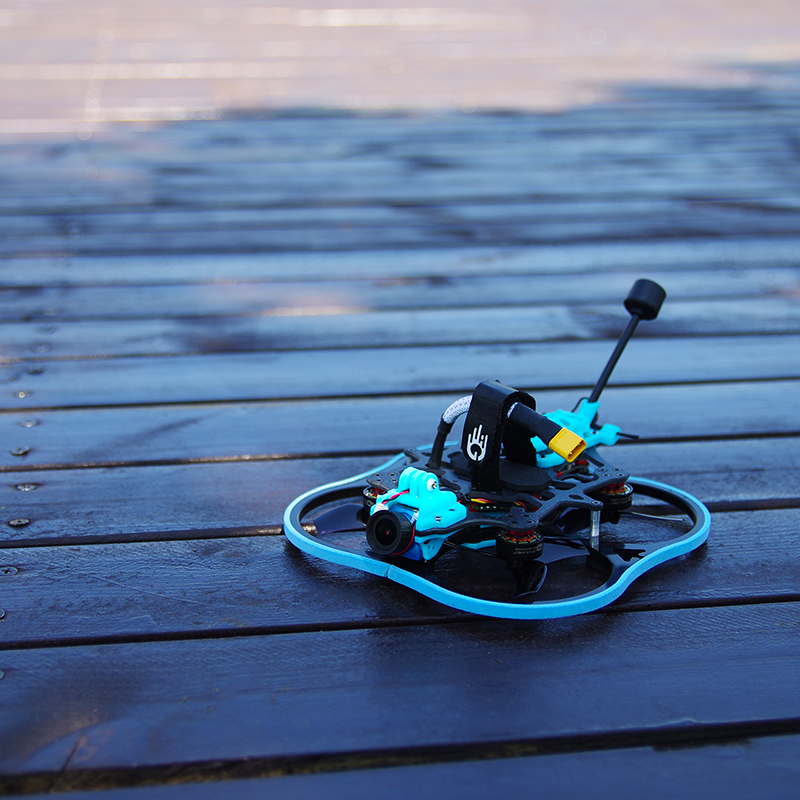

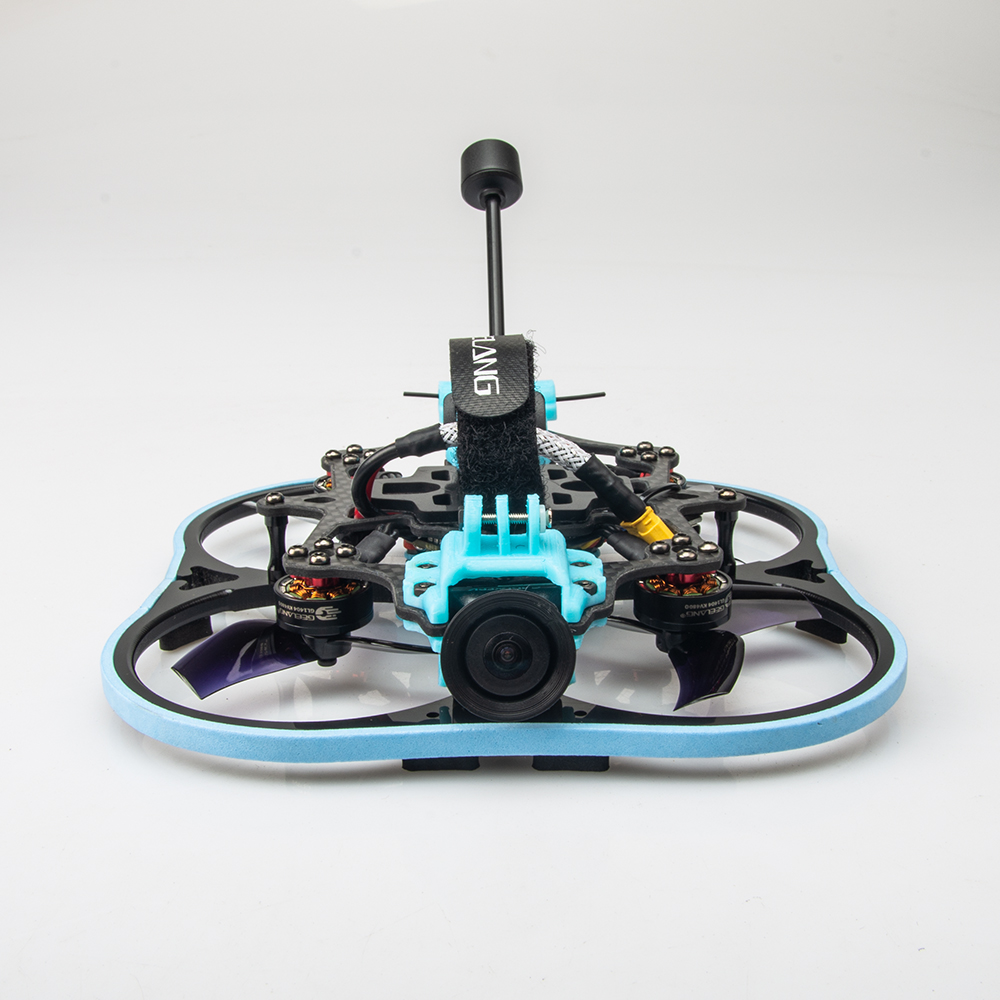

GEELANG Spoiler 25X WHOOP 3-4S FPV 5.8G VTX 2.5 inches (Standard edition)

Brand Name: GEELANG
Mode Name: Spoiler25X whoop 5.8G VTX (Standard edition)
Applicable players:FPV Getting Started Exercises、 FPV Professional manipulation、Fpv video mount flight.
Wheelbase: 96mm
Size:148mm * 148mm * 48mm

Product Details

GEELANG Spoiler 25X WHOOP 3-4S FPV  5.8G VTX 2.5 inches (Standard edition)


Brand Name: GEELANG

Mode Name: Spoiler25X whoop 5.8G VTX (Standard edition)

Applicable players:FPV Getting Started Exercises、 FPV Professional manipulation、Fpv video mount flight.

Wheelbase: 96mm

Size:148mm * 148mm * 48mm


Recommended battery:3S-4S 450mAh-850mah lipo、lihv,Cruise flight time can reach 4-7 minutes,4S 750mah lipo、lihv Use for shooting flight

Best recommended battery:4S-750MAH 95C-110C LIHV

Support installation:Lightweight gopro6、7、8、9、10(The power supply plug needs to be connected by the user)

Spare parts specifications:

GL1404 KV4800 Motor

Motor :KV4800


Stator Diamter:14mm

Stator Length:4mm

Shaft Diameter:Φ1.5mm

WindingSpecifications:220℃ Class Multiple oxygen-free copper


No.of Cells(Lipo):3S-4S



CPU:STM32F411 CEU6(100MHz)

IMU: ICM-42688 (SPI connection)
Firmware: F411

OSD:Built-inOSD (STM32 controls the OSD chip via SPI)

Data storage:8m black box

Programmable LED such as WS2812: Support
Built-in current sensor
Reserved buzzer interface
Mounting Hole: 25.5x25.5mm

-  Support Frsky/ Flysky/Futaba/DSMX/TBS /ELRS

 Crossfire Receiver


Onboard 40A BL_S 4in1 ESC

Onboard 4in1 ESC MCU upgraded to EFM8BB21

Power supply: 2-6S LiPo/LiPo HV (7.4v/26v)

Current: 40A continuous peak 45A (5 seconds)

Support BLHeliSuite programmable

Factory firmware: G_H_30_REV

Default protocol: DSHOT300



Gemfan D63 Cinewhoop props

Material: PC

Weight: 0.91g

Pitch: 2.5 inches

Center hole diameter: 1.5mm 3 holes

Battery recommended

Species : lipo、lipoHV

Continuous Discharge Rate: 95C
Instantaneous discharge rate: 110C
Connector: xt30


5.8G VTX

Power switching: four gears (25MW, 100MW, 200MW,400MW,600MW)

Frequency: 40CH

Input voltage: 11.1V-14.8V

Current consumption: 580mA (type)

Frequency: 5.8GHz 5bands 40 channels


Smartaudio ready (Frsky EU-LBT and DSMX versions are not compatible)

Weight: 6.0g

CADDX Camera

Model: RATEL2

Image Sensor: 1/1.8 CMOS

Horizontal Resolution: 1200TVL

Lens: 2.1mm(M8) FOV 165°(4:3/16:9)

Signal System: NTSC / PAL

S/N Ratio: >50dB

Min. Illumination: 0.01Lux@1.2F

Current :210mA@5V-36V

Housing Material: ABS

Net Weight: 5.9g

Dimensions: L19mm*W19mm*H20mm

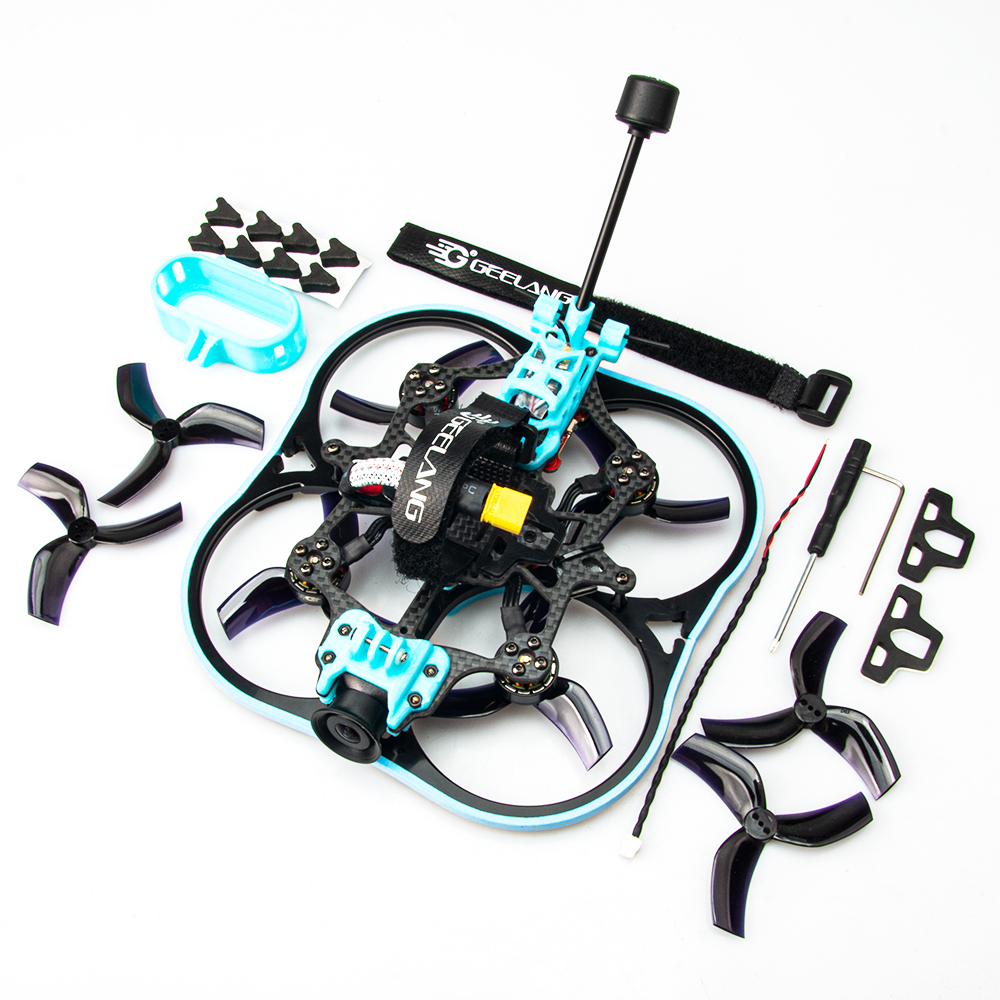

1 x  Spoiler25x WHOOP(5.8GVTX)

Package1:AC900 RX

2:Frsky XM + \ EU XM+  RX

3:Flysky  RX

4:TBS    RX

6:ELRS2.4(T)EP  RX

7:No RX  PNP


1 x D63 2.5(2cw +2ccw)propeller

1 x Screwdriver tool

1 x INSTA 360go2 Camera mounting base

Product Features

Geelong first brand-new design, 2.5 inch propeller inverted installation aircraft.

New rack materials Simple and light mechanism be easy to carry about The image transmission is stable and reliable.

Suitable for violent flight Accurate aerobatics flight control.

The geelang customized version 1404 is powerful and endurable.

Support the installation of various lightweight motion cameras.

The flight picture is stable
