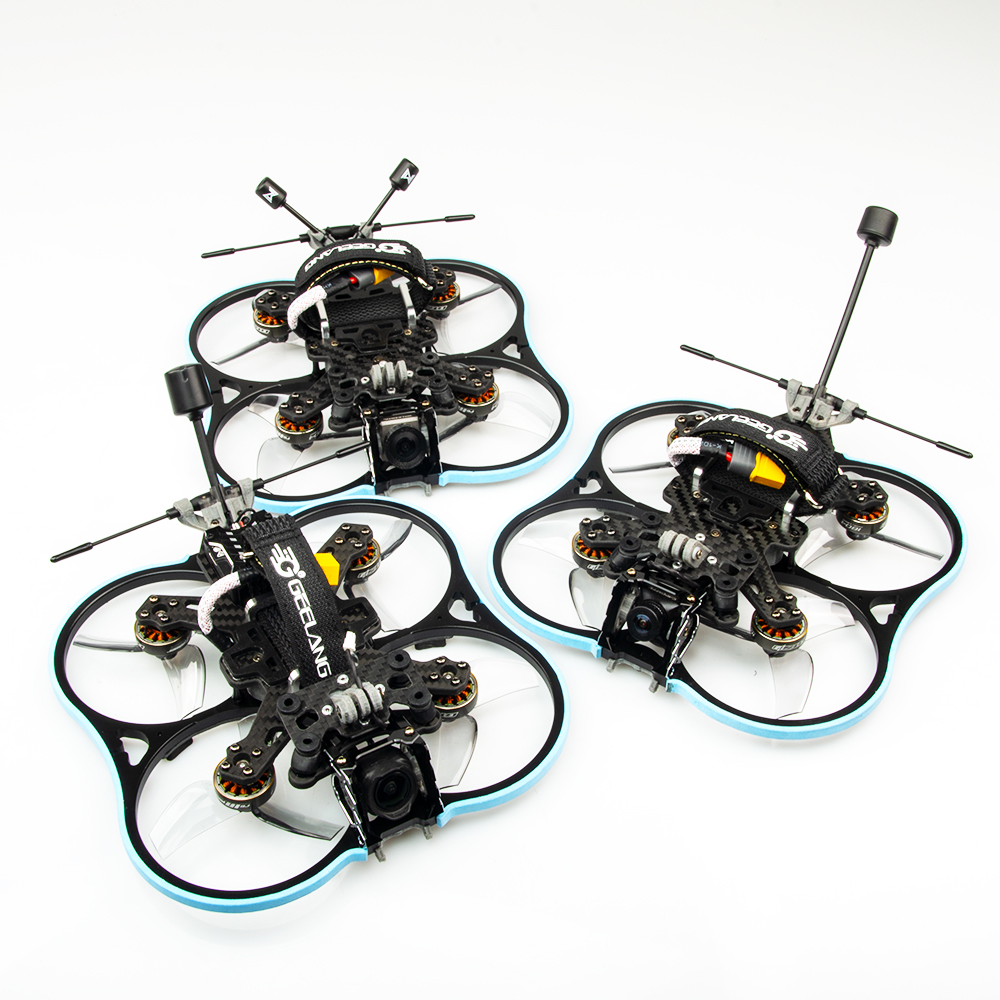

GEELANG Spoiler30X WHOOP 4-6S FPV （Standard edition） DJI O3/VISTA/5.8GVTX/CADDX AVATAR HD 3 inches
Mode Name: Spoiler30X whoop
Applicable players：FPV Getting Started Exercises、 FPV Professional manipulation、Fpv video mount flight.
Wheelbase: 120mm
Size:180mm * 180mm * 48mm
Weight：220g（5.8GVTX）、240g（DJI VISTA HD）、228g（CADDX AVATAR HD ）249g（DJIO3 HD）
Recommended battery：4S-6S 1100mAh-1300mah 150C lipo、lihv
GEELANG Spoiler30X WHOOP 4-6S FPV （Standard edition）
Brand Name: GEELANG
Mode Name: Spoiler30X whoop
Applicable players：FPV Getting Started Exercises、 FPV Professional manipulation、Fpv video mount flight.
Wheelbase: 120mm
Size:180mm * 180mm * 48mm
Weight：220g（5.8GVTX）、240g（DJI VISTA HD）、228g（CADDX AVATAR HD ）249g（DJI
O3 HD）
Recommended battery：4S-6S 1100mAh-1300mah 150C lipo、lihv，
Support installation：Lightweight gopro6、7、8、9、10（The power supply plug needs to be connected by the user）
Spare parts specifications:
|
RCINPOWER 1804 KV2450 Motor |
Motor ：KV2450 Configu-ration:9N12P Stator Diamter:18mm Stator Length:4mm Shaft Diameter:Φ1.5mm WindingSpecifications:220℃ Class Multiple oxygen-free copper Weight(g):13g No.of Cells(Lipo)：4S-6S
|
|
F4 AIO40A PRO ESC |
CPU:STM32F411 CEU6(100MHz) IMU: ICM-42688 (SPI connection) OSD:Built-inOSD (STM32 controls the OSD chip via SPI) Data storage:8m black box Programmable LED such as WS2812: Support - Support Frsky/ Flysky/Futaba/DSMX/TBS /ELRS Crossfire Receiver
|
|
Onboard 40A BL_S 4in1 ESC |
Onboard 4in1 ESC MCU upgraded to EFM8BB21 Power supply: 2-6S LiPo/LiPo HV (7.4v/26v) Current: 40A continuous peak 45A (5 seconds) Support BLHeliSuite programmable Factory firmware: G_H_30_REV Default protocol: DSHOT300
|
|
propeller |
T-MOTOR T76S Cinewhoop props Material: PC Weight: 2.8g Pitch:3.0 inches Center hole diameter: 1.5mm 3 holes |
|
Battery recommended |
Species : LIPO、LIHV Capacity:1100mah-1300mah- Voltage:14.8-25.2v
|
|
5.8G VTX |
Power switching: four gears (250MW, 500MW, 800MW，1.2W) Frequency: 40CH Input voltage: 11.1V-25.2V Current consumption: 800mA (type) Frequency: 5.8GHz 5bands 40 channels belt Smartaudio ready (Frsky EU-LBT and DSMX versions are not compatible) Weight: 8.0g |
|
CADDX RATEL2 Camera |
Model: RATEL2 Image Sensor: 1/1.8CMOS Horizontal Resolution: 1200TVL Lens: 2.1mm(M8) FOV 165°(4:3) Signal System: NTSC / PAL S/N Ratio: >50dB Min. Illumination: 0.01Lux@1.2F Current :210mA@5V-36V Housing Material: ABS Net Weight: 6g Dimensions: L19mm*W19mm*H20mm
|
|
DJI VISTA Runcam LINK WASP Camera |
Model: DJI LINK WASP Image Sensor: 1/2 CMOS resolving power：1280x720 60fps Lens: 2.1mm(M8) FOV 157°(16.:9) Current :7.4V-26V Housing Material: ABS Net Weight:8g Dimensions: L19mm*W19mm*H20mm
|
|

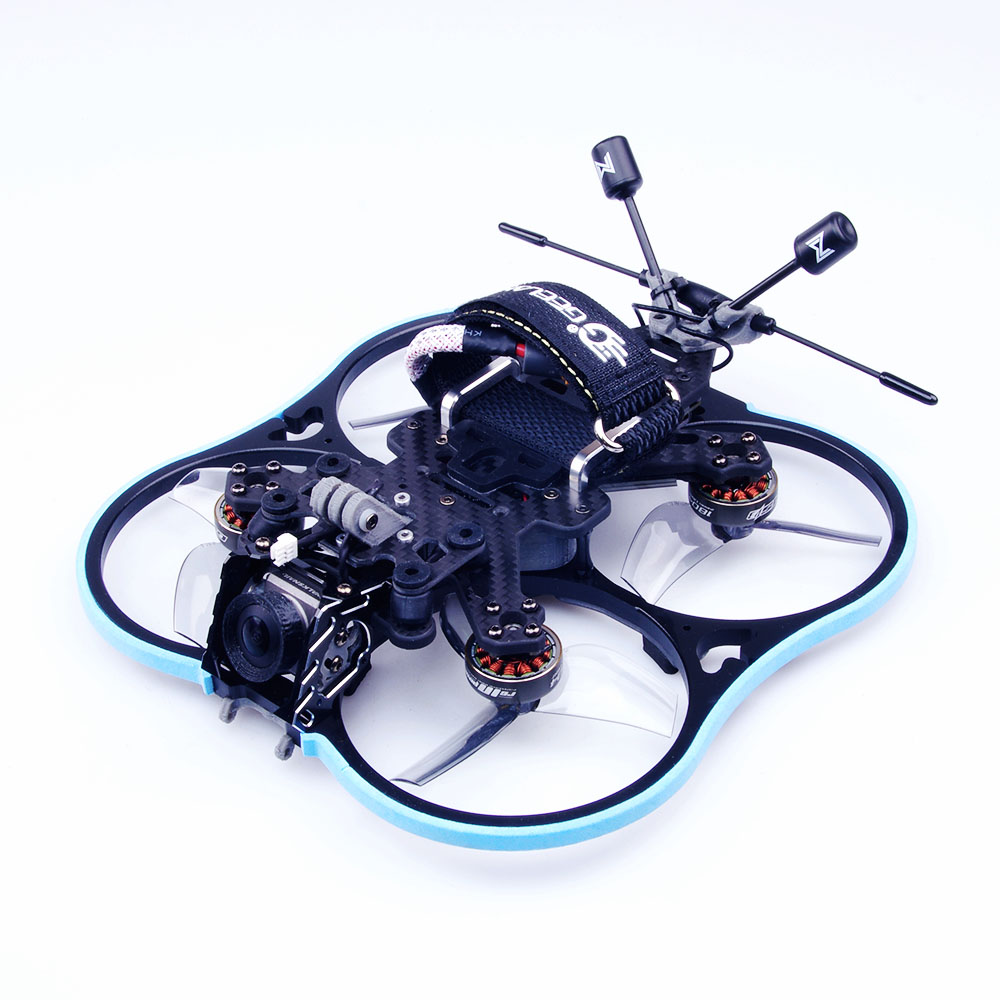

CADDX AVATAR Camera |
Model: CADDX AVATAR Image Sensor: 1/2.7 CMOS resolving power：1280x720 120fps Lens: 2.1mm(M8) FOV 170°(16.:9\4:3) Current :7.4V-26V Housing Material: CNC Net Weight:6g Dimensions: L19mm*W19mm*H22mm |
|
DJI O3 HD Camera |
Model: DJI 03 Image Sensor: 1/1.7 CMOS resolving power：1900X1080 100 fps Lens: 2.1mm(M8) FOV 155°(16.:9) Current :7.4V-26V Housing Material: ABS Net Weight:8g Dimensions: L21.2mm*W20mm*H19.5mm
|

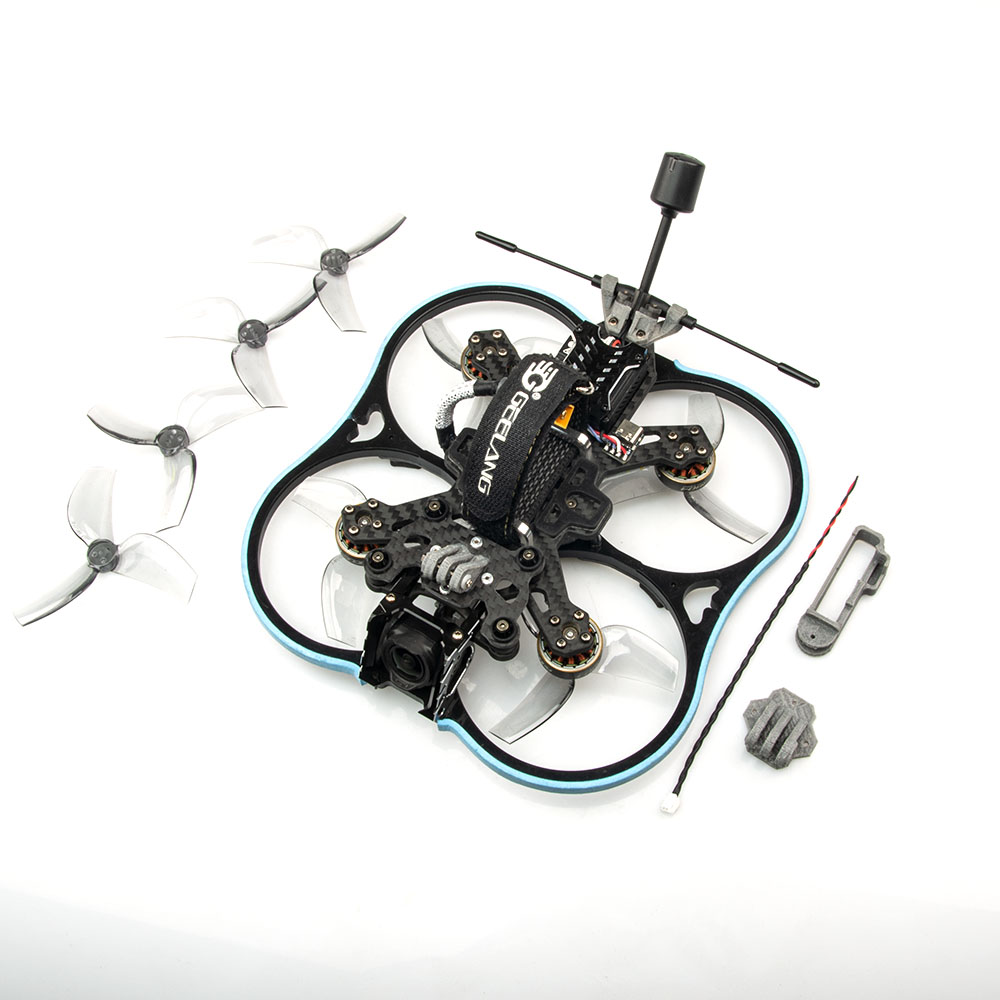

Package Included：
1 x Spoiler30x WHOOP(5.8GVTX)\(DJIVISTA LINK HD)\(CADDX AVATAR HD)(DJI O3 HD)
Package1：AC900 RX
2：Frsky XM + \ EU XM+ RX
3：Flysky RX
4：TBS RX
6：ELRS2.4/915M（T） RX
7：No RX PNP
1 x T76S 3.0（2cw +2ccw）propeller
1 x Screwdriver tool
1 x GOPRO Lightweight Camera Mount
