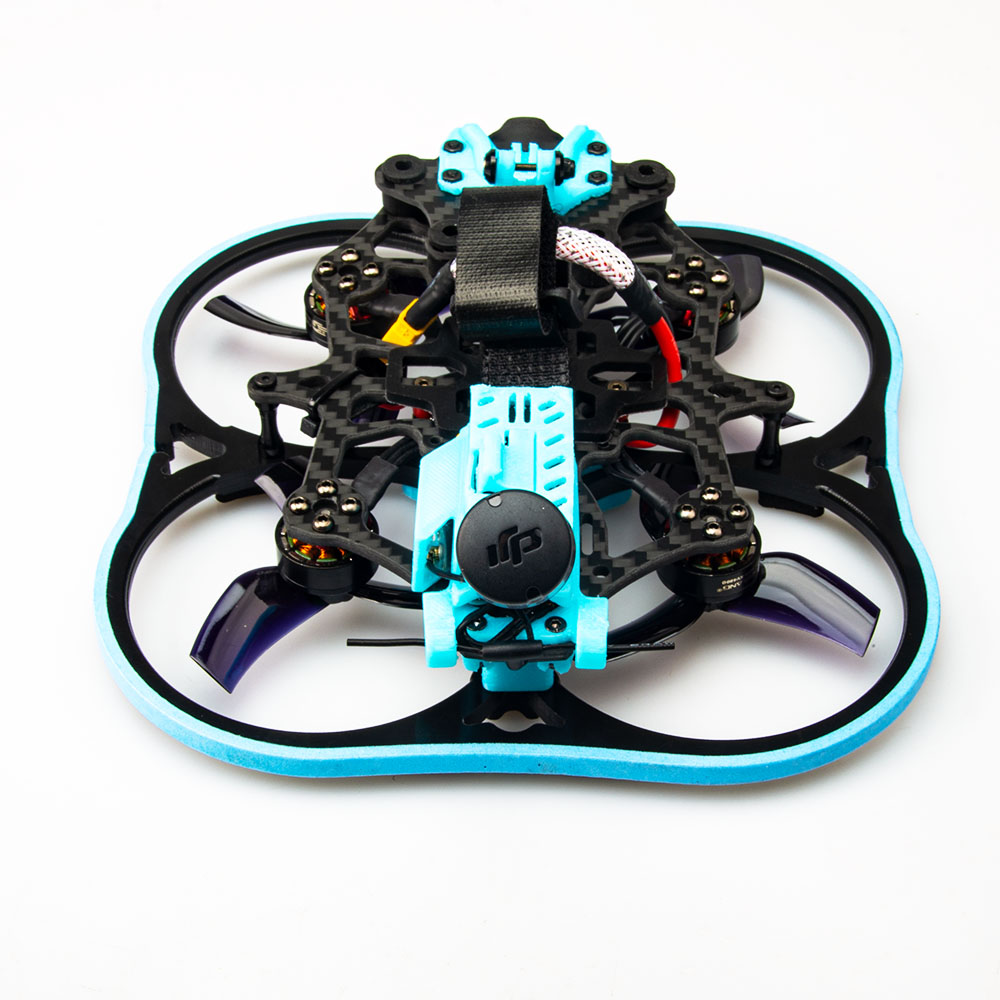

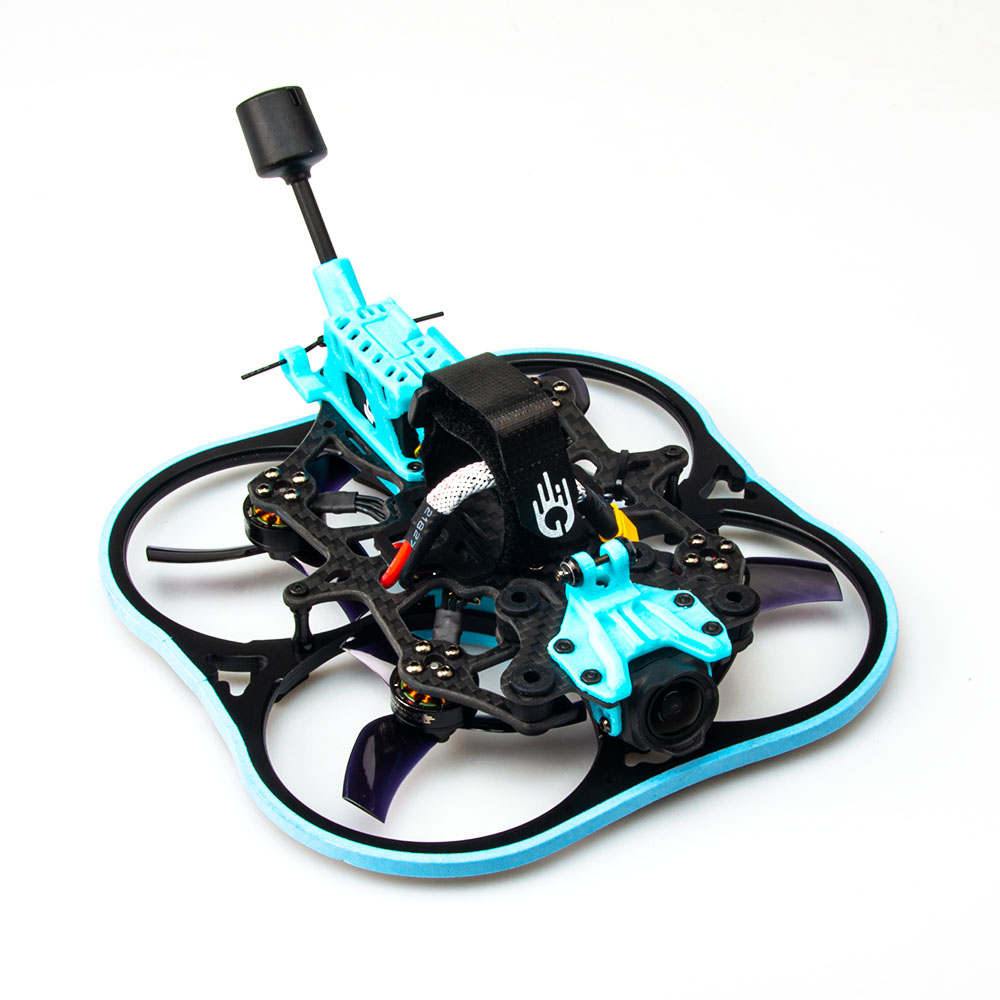

GEELANG Spoiler 25X WHOOP 3-4S FPV （Expert Edition）
Mode Name: Spoiler25X whoop DJI O3/VISOTA WASP HD
Applicable players：FPV Getting Started Exercises、 FPV Professional manipulation、Fpv video mount flight.
Wheelbase: 96mm
Size:148mm * 148mm * 48mm
GEELANG Spoiler 25X WHOOP 3-4S FPV （Expert Edition）
Brand Name: GEELANG
Mode Name: Spoiler25X whoop
Applicable players：FPV Getting Started Exercises、 FPV Professional manipulation、Fpv video mount flight.
Wheelbase: 96mm
Size:148mm * 148mm * 48mm
Weight：169g（DJI VISTA LINK WASP HD）、184g（DJI O3 HD ）
Recommended battery：3S-4S 650mAh-850mah lipo、lihv，Cruise flight time can reach 4-7 minutes，4S 750mah lipo、lihv Use for shooting flight
Best recommended battery：4S-750MAH 95C-110C LIHV
Support installation：Lightweight gopro6、7、8、9、10（The power supply plug needs to be connected by the user）
Spare parts specifications:
|
GL1404 KV4300 Motor |
Motor ：KV4800 Configu-ration:9N12P Stator Diamter:14mm Stator Length:4mm Shaft Diameter:Φ1.5mm WindingSpecifications:220℃ Class Multiple oxygen-free copper Weight(g):10g No.of Cells(Lipo)：3S-4S
|
|
F4 AIO40A PRO ESC |
CPU:STM32F411 CEU6(100MHz) IMU: ICM-42688 (SPI connection) OSD:Built-inOSD (STM32 controls the OSD chip via SPI) Data storage:8m black box Programmable LED such as WS2812: Support - Support Frsky/ Flysky/Futaba/DSMX/TBS /ELRS Crossfire Receiver
|
|
Onboard 40A BL_S 4in1 ESC |
Onboard 4in1 ESC MCU upgraded to EFM8BB21 Power supply: 2-6S LiPo/LiPo HV (7.4v/26v) Current: 40A continuous peak 45A (5 seconds) Support BLHeliSuite programmable Factory firmware: G_H_30_REV Default protocol: DSHOT300
|
|
propeller |
Gemfan D63 Cinewhoop props Material: PC Weight: 0.91g Pitch: 2.5 inches Center hole diameter: 1.5mm 3 holes |
|
Battery recommended |
Species : lipo、lipoHV Capacity:650mah-750mah-850mah
|
|
DJI O3 HD |
Power switching: four gears (1200MW) Frequency:8CH Input voltage: 7.4V-22.2V Dimensions: L20mm*W20mm*H20mm resolving power：1900x1080 100fps video recording：4k 60fps、 2.7k 120fps/60fps 、1080p120fps/60fps Support for image stabilization software：Gyroflow |
|
DJI VISTA Runcam LINK WASP Camera |
Model: DJI LINK WASP Image Sensor: 1/2 CMOS resolving power：1280x720 60fps Lens: 2.1mm(M8) FOV 157°(16.:9) Current :7.4V-14.7V Housing Material: ABS Net Weight:8g Dimensions: L19mm*W19mm*H20mm
|
|
|
|
|
|
|

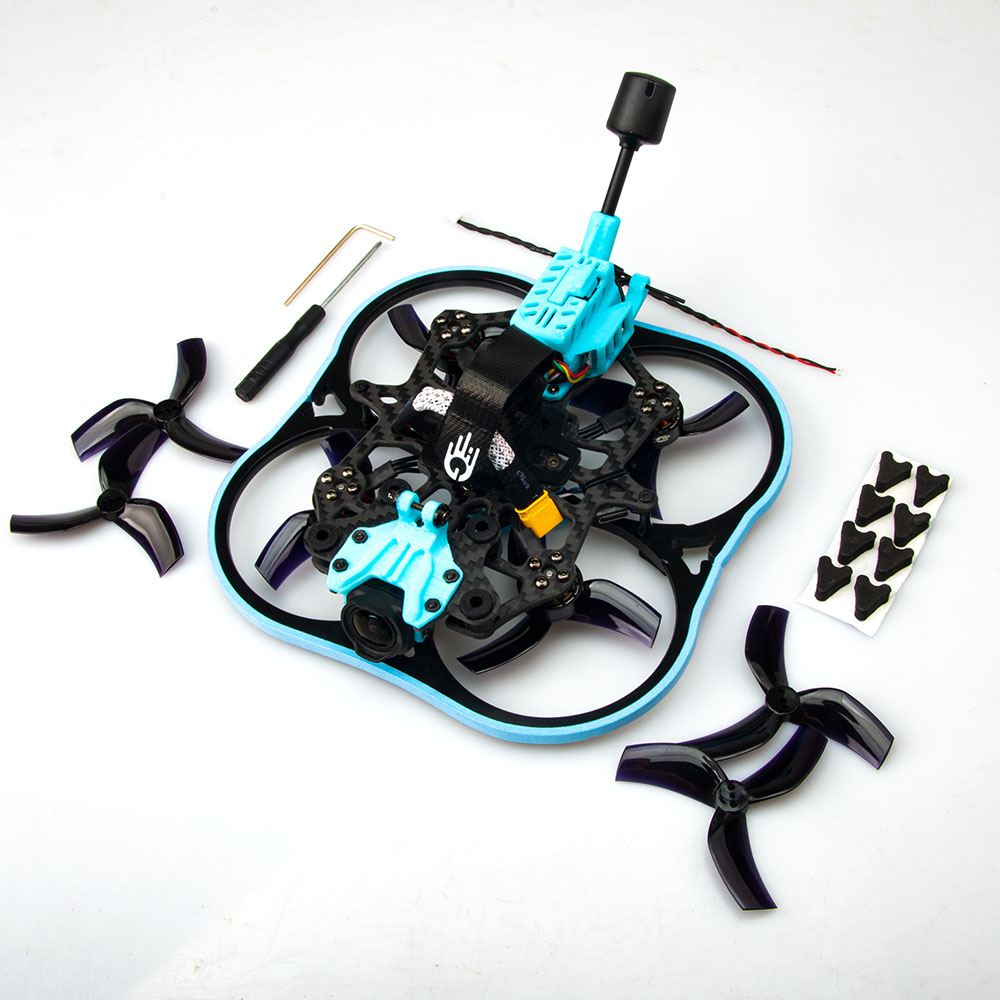

PARTS LIST：
1 x Spoiler25x WHOOP (DJIVISTA LINK WASP HD)\(DJI O3 HD)
Package1：AC900 RX
2：Frsky XM + \ EU XM+ RX
3：Flysky RX
4：TBS RX
6：ELRS2.4（T）EP RX
7：No RX PNP
1 x D63 2.5（2cw +2ccw）propeller
1 x Screwdriver tool
Product Features：
Geelong first brand-new design, 2.5 inch propeller inverted installation aircraft.
New rack materials Simple and light mechanism be easy to carry about The image transmission is stable and reliable.
Suitable for violent flight Accurate aerobatics flight control.
The geelang customized version 1404 is powerful and endurable.
Support the installation of various lightweight motion cameras.
The flight picture is stable
