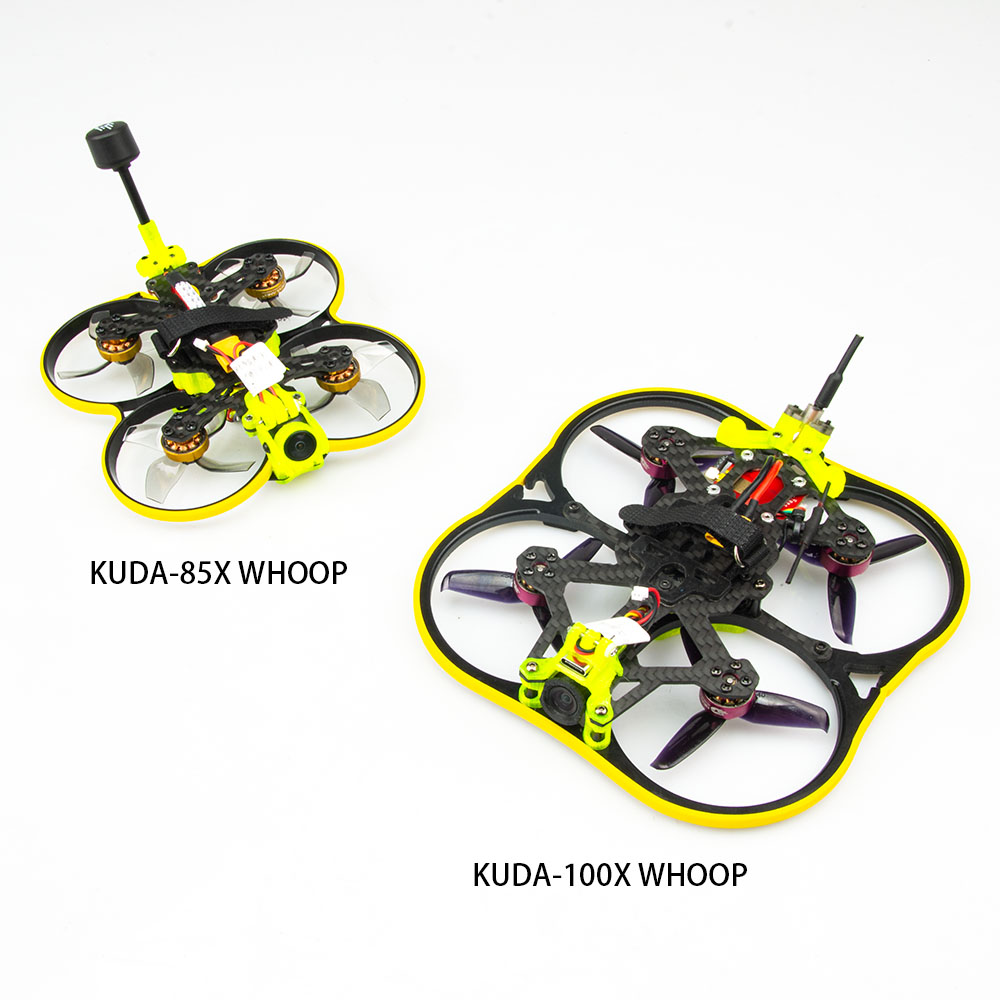

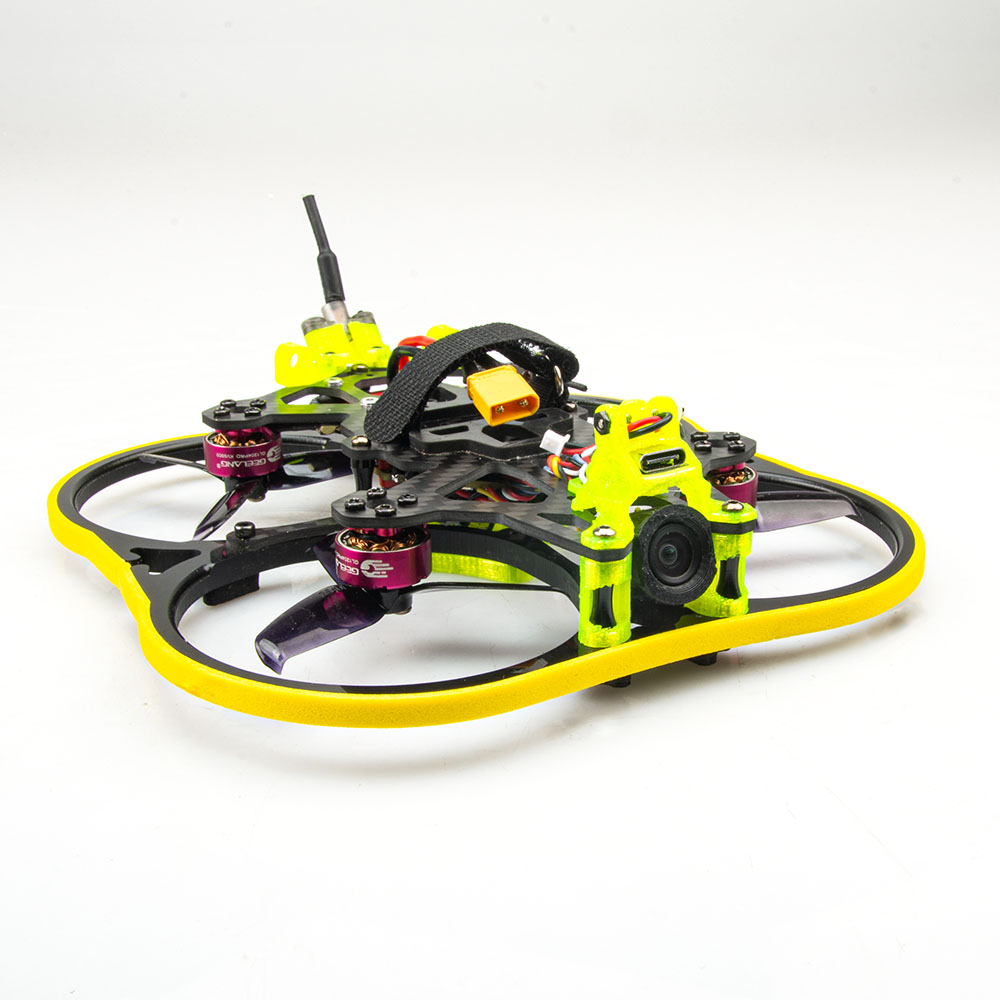

GEELANG KUDA100X WHOOP 3S 2.5 INCHES

Brand Name: GEELANG
Mode Name: KUDA100 X whoop
Applicable players:FPV Getting Started Exercises、 FPV Professional manipulation、Fpv video mount flight.
Wheelbase: 99mm
Size:148mm * 148mm * 35mm
Weight:119g(5.8GVTX)
Contacts

Product Details

Spare parts specifications:

GL1204 KV5000 Motor

Motor :KV5000

Configu-ration:9N12P

Stator Diamter:12mm

Stator Length:4mm

Shaft Diameter:Φ1.5mm

WindingSpecifications:220℃ Class Multiple oxygen-free copper

Weight(g):5.3g

No.of Cells(Lipo):3S

F4 AIO20A PRO ESC

CPU:STM32F411 CEU6(100MHz)

IMU: BMP-270 (SPI connection)
Firmware: F411

OSD:Built-inOSD (STM32 controls the OSD chip via SPI)

Data storage:8m black box

Programmable LED such as WS2812: Support
Built-in current sensor
Reserved buzzer interface
Mounting Hole: 25.5x25.5mm
Weight:
8g

-  Support Frsky/ Flysky/Futaba/DSMX/TBS /ELRS

 Crossfire Receiver



Onboard 20A BL_S 4in1 ESC

Onboard 4in1 ESC MCU upgraded to EFM8BB21

Power supply: 2-6S LiPo/LiPo HV (7.4v/26v)

Current: 20A continuous peak 25A (5 seconds)

Support BLHeliSuite programmable

Factory firmware: G_H_30_REV

Default protocol: DSHOT300



propeller

Gemfan 2540 Cinewhoop props

Material: PC

Weight: 0.91g

Pitch: 2.5 inches

Center hole diameter: 1.5mm 3 holes

Battery recommended

Species : lipo、lipoHV

Capacity:500mah-750mah-850mah
Voltage:11.1V
Continuous Discharge Rate: 95C
Instantaneous discharge rate: 110C
Connector: xt30



5.8G VTX

Power switching: four gears (25MW, 100MW, 200MW,400MW,600MW)

Frequency: 40CH

Input voltage: 11.1V-14.8V

Current consumption: 580mA (type)

Frequency: 5.8GHz 5bands 40 channels

belt

Smartaudio ready (Frsky EU-LBT and DSMX versions are not compatible)

Weight: 6.0g

CADDX ANT Camera

Model: ANT

Image Sensor: 1/2 CMOS

Horizontal Resolution: 1200TVL

Lens: 2.1mm(M8) FOV 155°(4:3)

Signal System: NTSC / PAL

S/N Ratio: >50dB

Min. Illumination: 0.01Lux@1.2F

Current :210mA@5V-36V

Housing Material: ABS

Net Weight: 4g

Dimensions: L14mm*W14mm*H8mm













Include:

1 x  KUDA100X WHOOP(5.8GVTX)

Package 1:AC900 RX

2:Frsky XM + \ EU XM+  RX

3:Flysky  RX

4:TBS    RX

6:ELRS2.4(T)EP  RX

7:No RX  PNP



1 x Gemfan 2540  2.5(2cw +2ccw)propeller

1 x Screwdriver tool
